Estes Rockets

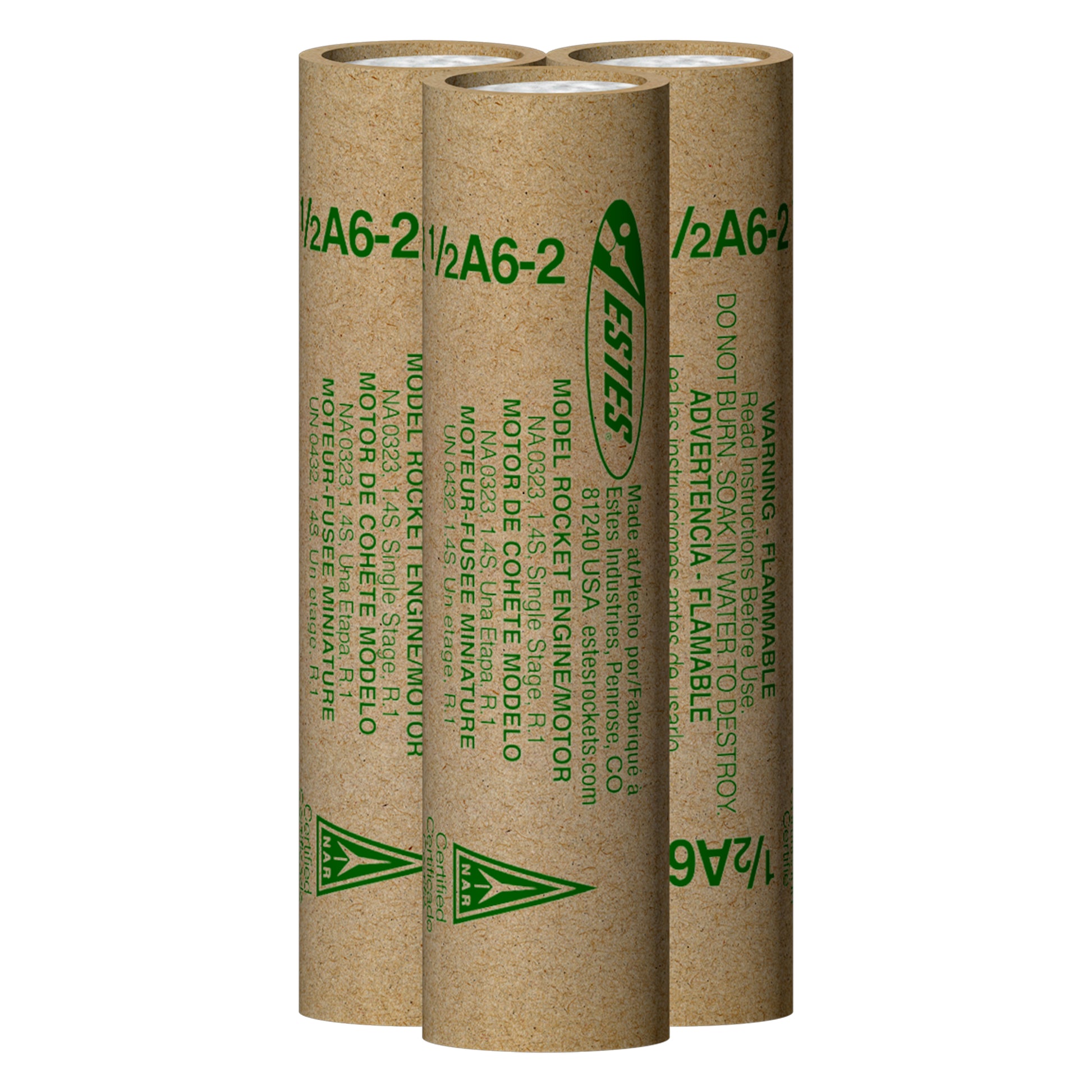

1/2A6-2 Engines

SKU: 001593
$11.29
Sale

ENGINES FOR MODEL ROCKETS

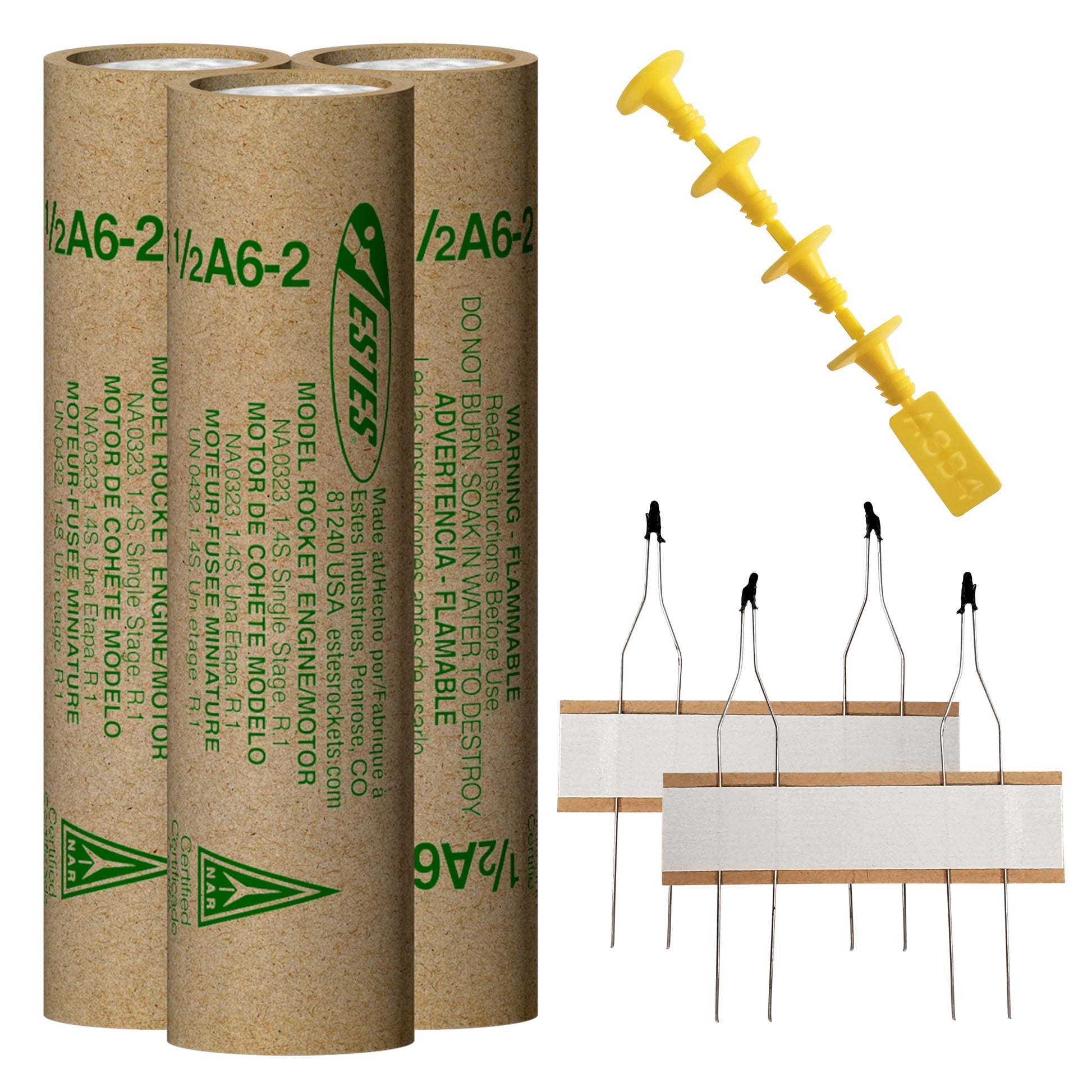

3 – 1/2A6-2 Engines
4 – Starters
4 – Starter Plugs

PLEASE NOTE: You must have a physical address for delivery.

Overview

Recommended Rockets

Specs

Reviews

Overview

The Estes 1/2A6-2 engine is single stage engine designed for model rocket flight. This engine is a standard engine designed for flights in rockets weighing less than 2 ounces, including the engine. Each package includes 3 engines, 4 starters and 4 starter plugs.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

Overview

1/2A6-2 Engines

Compatible Rockets

  • Estes Wizard Rocket

    Wizard™

    Wizard™

    $14.99
    $14.99 $14.99
  • Estes Orange Bullet Model Rocket Kit

    Orange Bullet™

    Orange Bullet™

    $12.99
    $12.99 $12.99
  • Estes Alpha III Beginner Model Rocket

    Alpha III®

    Sold out

    Alpha III®

    $23.99
    $23.99 $23.99
    Sold out
  • Hi-Flier model rocket

    Hi-Flier®

    Hi-Flier®

    $12.99
    $12.99 $12.99

Technical Specifications

Technical Specifications

  • Total Impulse

1.25 N-sec

  • Time Delay

2 Seconds

  • Max Lift Weight

2.0 oz (57 g)

  • Max Thrust

8.90 Newtons (2.0 lbs)

  • Thrust Duration

0.30 Seconds

  • Length

2.75 in. (7 cm)

  • Diameter

18 mm

  • Weight

.48 oz. (13.6 g)

  • Propellant Weight

0.10 oz (2.7 g)
001593 - 1/2A6 Rocket Engine Thrust Curve Chart

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
James Regalado
Rockets worked as expected

Used them for a Lunar Launch Spot contest. Performed as expected, as we were able to predict arc and duration. We came within 5.5 meters of the target.

A
Austin swinford
Good

Good
