Estes A3-4T Engine Flight Pack
Estes A3-4T Model Rocket Engine Flight Pack
Estes A3-4T Engine Flight Pack with Plugs, Ignitors, and Recovery Wadding
Estes A3-4T Engines 4 Pack
Estes A3-4T Rocket Engine Flight Pack Assembly
A3 Model Rocket Engine Thrust Curve Chart
Model Rocket Thrust Curve Example
Estes 13mm Model Rocket Engine Assembly How-To Video

A3-4T Engine Flight Pack

SKU: 010058
$12.99
Sale Sold out

The Estes A3-4T Flight Pack is designed for small, lightweight model rockets requiring 13mm mini engines. With a 2.50 N-sec total impulse, a 4-second delay, and a thrust duration of just 0.6 seconds, this engine delivers quick, efficient liftoffs followed by reliable deployment timing.

Each flight pack includes 4 A3-4T engines, 4 starters, 4 plugs, and 12 sheets of recovery wadding—making it a complete solution for rocketeers looking for consistent mini engine performance in every launch.

Includes:
- 4 A3-4T Engines
- 4 Starters
- 4 Starter Plugs
- 12 Sheets of Recovery Wadding

PLEASE NOTE: You must have a physical address for delivery.

Overview

The Estes A3-4T Flight Pack delivers a balanced combination of performance and control, making it an excellent option for lightweight model rockets. With a total impulse of 2.50 N-sec and a 4-second delay, the A3-4T is ideal for small, streamlined rockets needing a gentle but reliable boost. Its short thrust duration of 0.6 seconds provides a quick lift-off while leaving plenty of time for a safe recovery sequence.

This engine can lift rockets weighing up to 2.0 oz (57 g), making it best suited for mini engine-powered models with 13mm engine mounts. It reaches impressive speeds and altitudes with a max thrust of 6.8 newtons, delivering a strong initial push before handing off to recovery deployment. The 4-second time delay offers sufficient coasting time for many light rockets before the ejection charge fires.

The compact design—just 1.8 inches in length and weighing only 0.28 oz—ensures a perfect fit in small model rockets where space and mass efficiency are critical. Despite its small size, the A3-4T engine packs a dependable performance punch, thanks to Estes’ precise engineering and safety-tested reliability.

Each A3-4T Flight Pack comes complete with four A3-4T engines, four starters, four starter plugs, and twelve sheets of recovery wadding. It’s everything you need to keep your low-weight rockets flying smoothly and safely time after time.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

Overview

Estes A3-4T Engine Flight Pack with Plugs, Ignitors, and Recovery Wadding

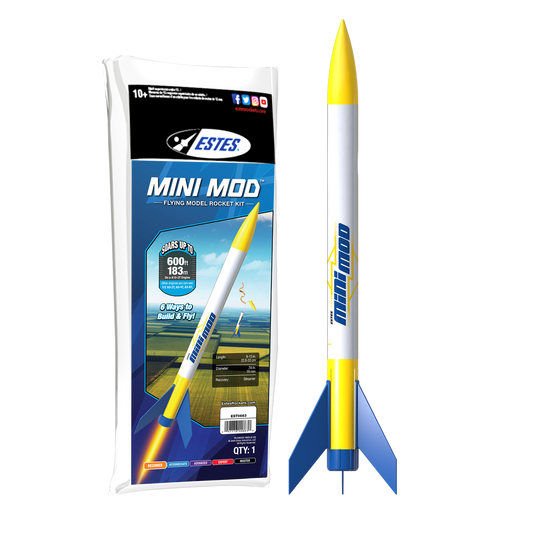

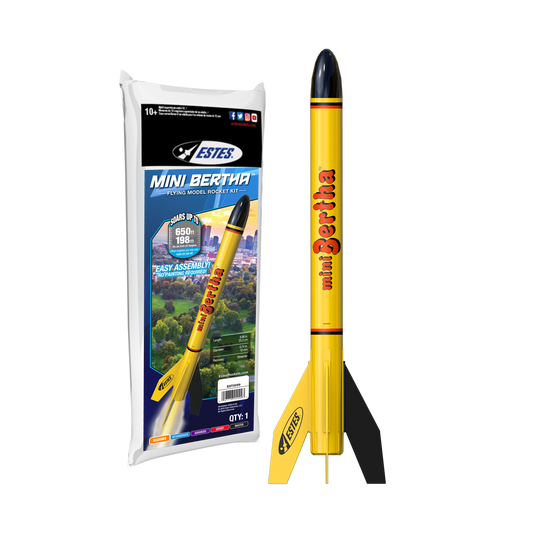

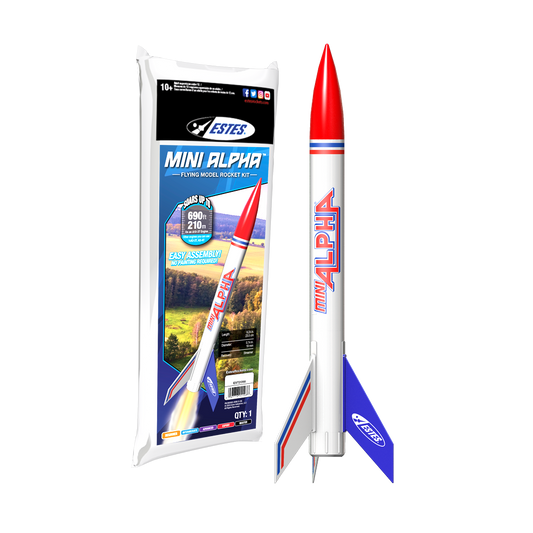

Compatible Rockets

Technical Specifications

Technical Specifications

  • Total Impulse

2.50 N-sec
  • Time Delay

4 Seconds
  • Max Lift Weight

2.0 oz (57 g)
  • Max Thrust

6.80 Newtons (1.5 lbs)
  • Thrust Duration

0.60 Seconds
  • Length

1.8 in. (4.6 cm)
  • Diameter

13 mm
  • Weight

.28 oz. (7.9 g)
  • Propellant Weight

0.12 oz (3.3 g)
A3 Model Rocket Engine Thrust Curve Chart
