A8-5 Engines
Single Engine

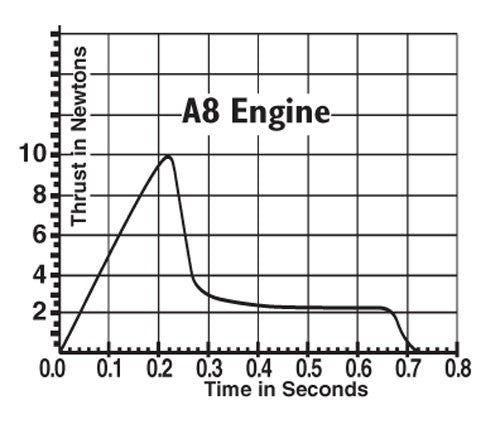

a8-5 engines thrust curve
A8-5 Engines

A8-5 Engines

Sku: 001599
$11.29
Sale

ENGINES FOR MODEL ROCKETS

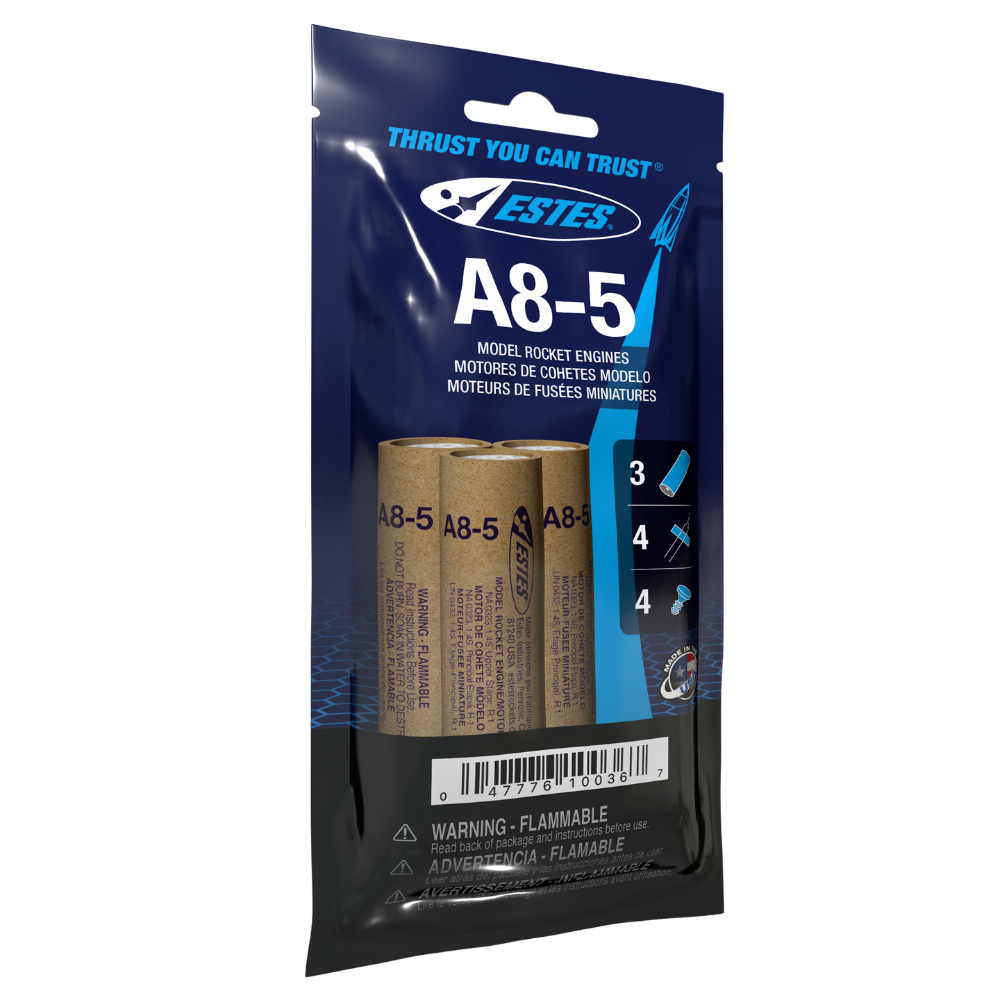

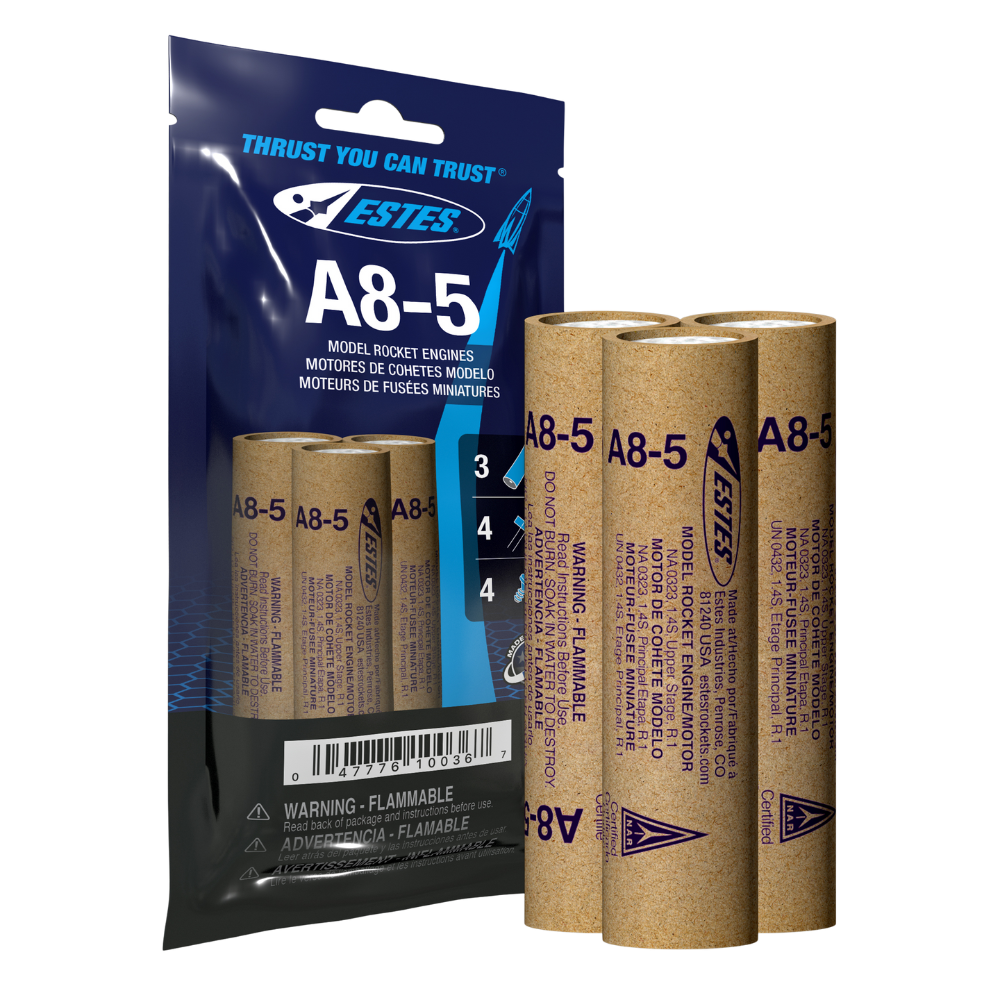

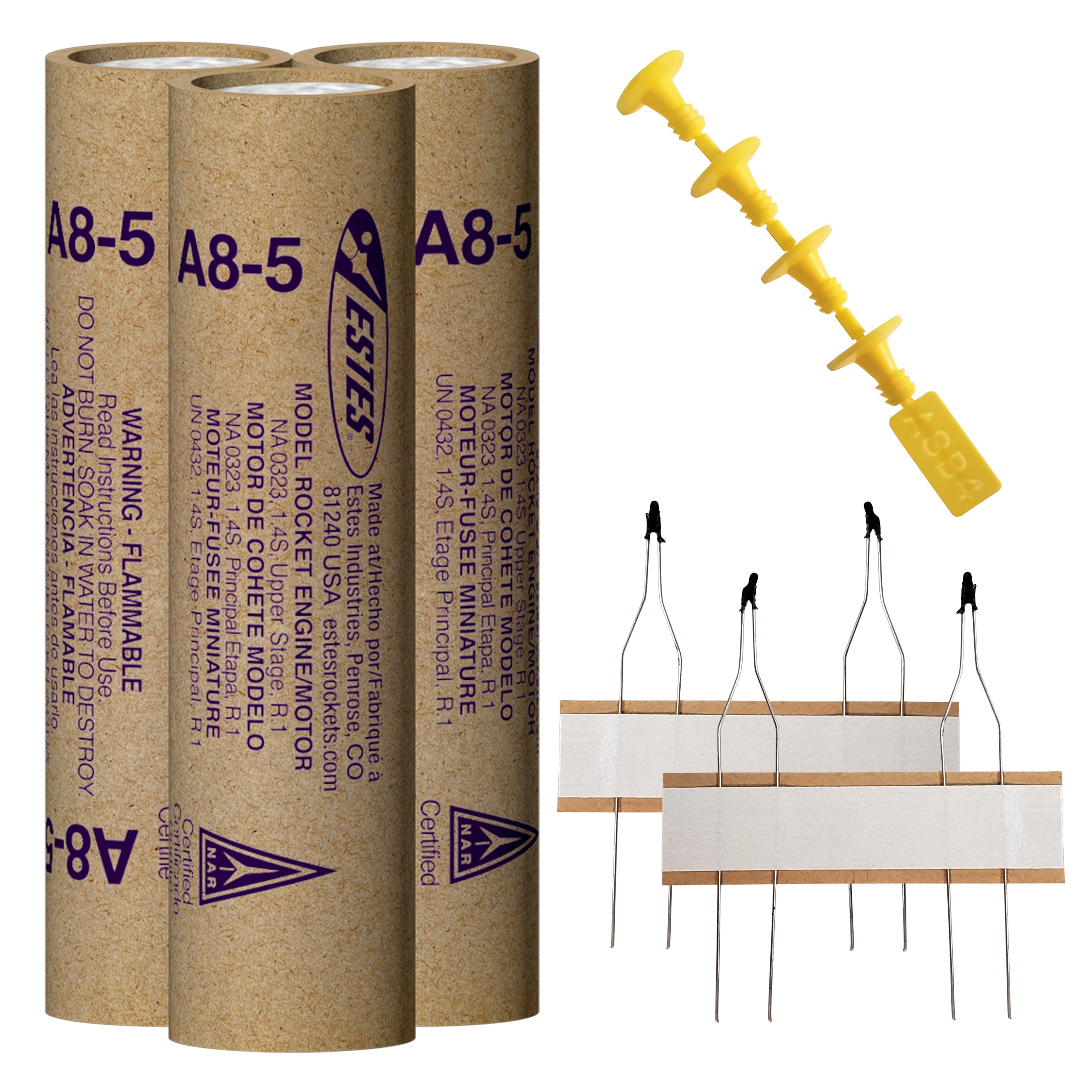

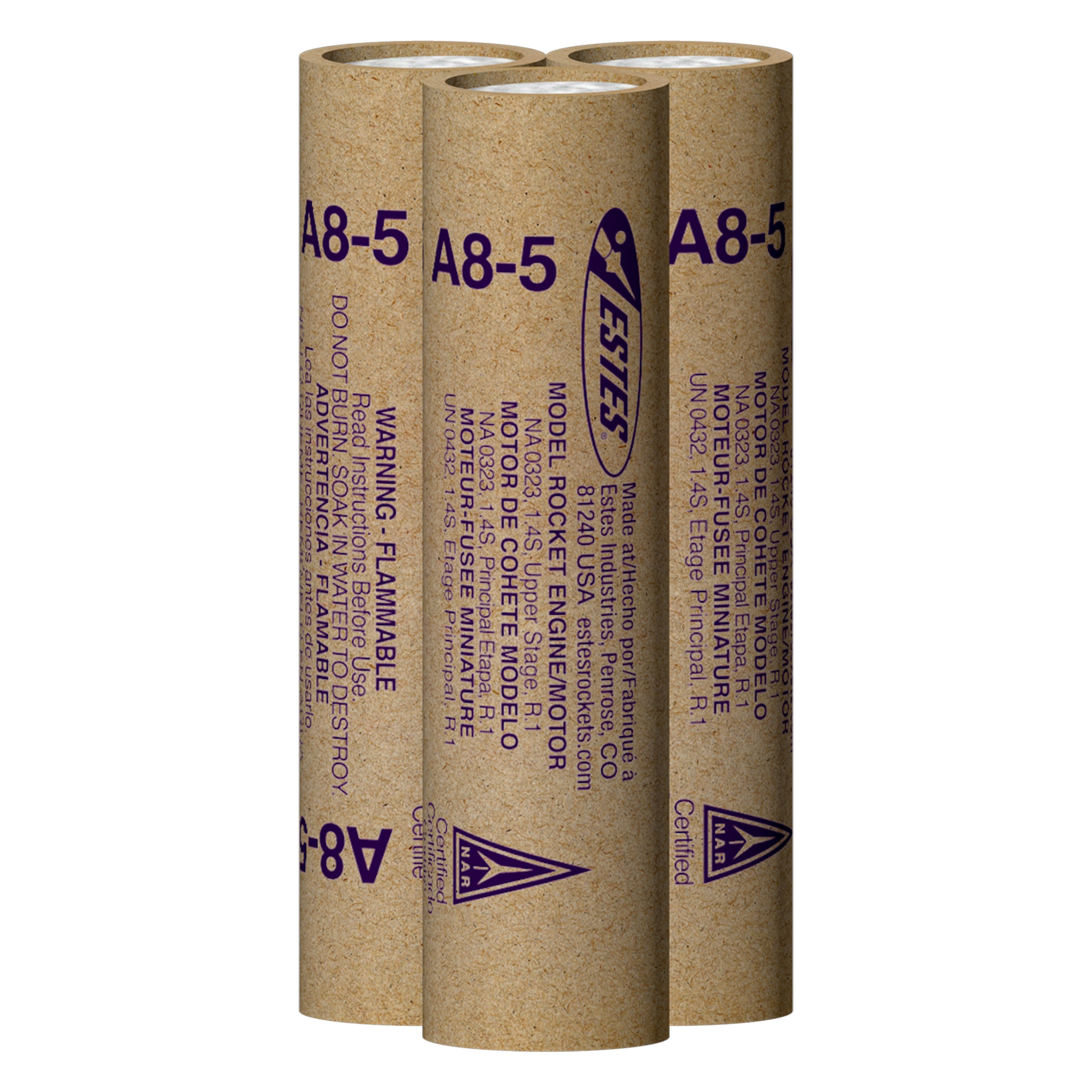

3 – A8-5 Engines
4 – Starters
4 – Starter Plugs

PLEASE NOTE: This item will ship by US Postal Service only. You MUST HAVE a physical mailbox or post office box for delivery.

Overview

The Estes A8-5 engine is an upper stage stage engine designed for model rocket flight. This engine can also be used as a single stage engine in rockets weighing less than 5 ounces, including the engine. Each package includes 3 engines, 4 starters and 4 plugs.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

Overview

Estes B6-4 Rocket Engine

Technical Specifications

Technical Specifications

  • Total Impulse

2.50 N-sec
  • Time Delay

5 Seconds
  • Max Lift Weight

2.0 oz (57 g)
  • Max Thrust

13.30 Newtons (3.0 lbs)
  • Thrust Duration

0.50 Seconds
  • Length

2.8 in. (7 cm)
  • Diameter

18 mm
  • Weight

.55 oz. (15.6 g)
  • Propellant Weight

0.14 oz (4.1 g)

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
Jerry Irvine
I am a strong believer in A8-5 motors. Most rockets

I am a strong believer in A8-5 motors. Most rockets actually can use the longer coast time anyway. If you know how to piston launch rockets you are always looking for a longer delay. When I do group programs of 100+ motors I always use rockets well suited to A8-5 and B6-6. The smaller fields and the ability to recover and refly your rocket easily makes lower power, longer delay motors optimal.When I do group programs each user flies at least 2 flights, and on average closer to 4. Estes is uniquely positioned to serve this market.
