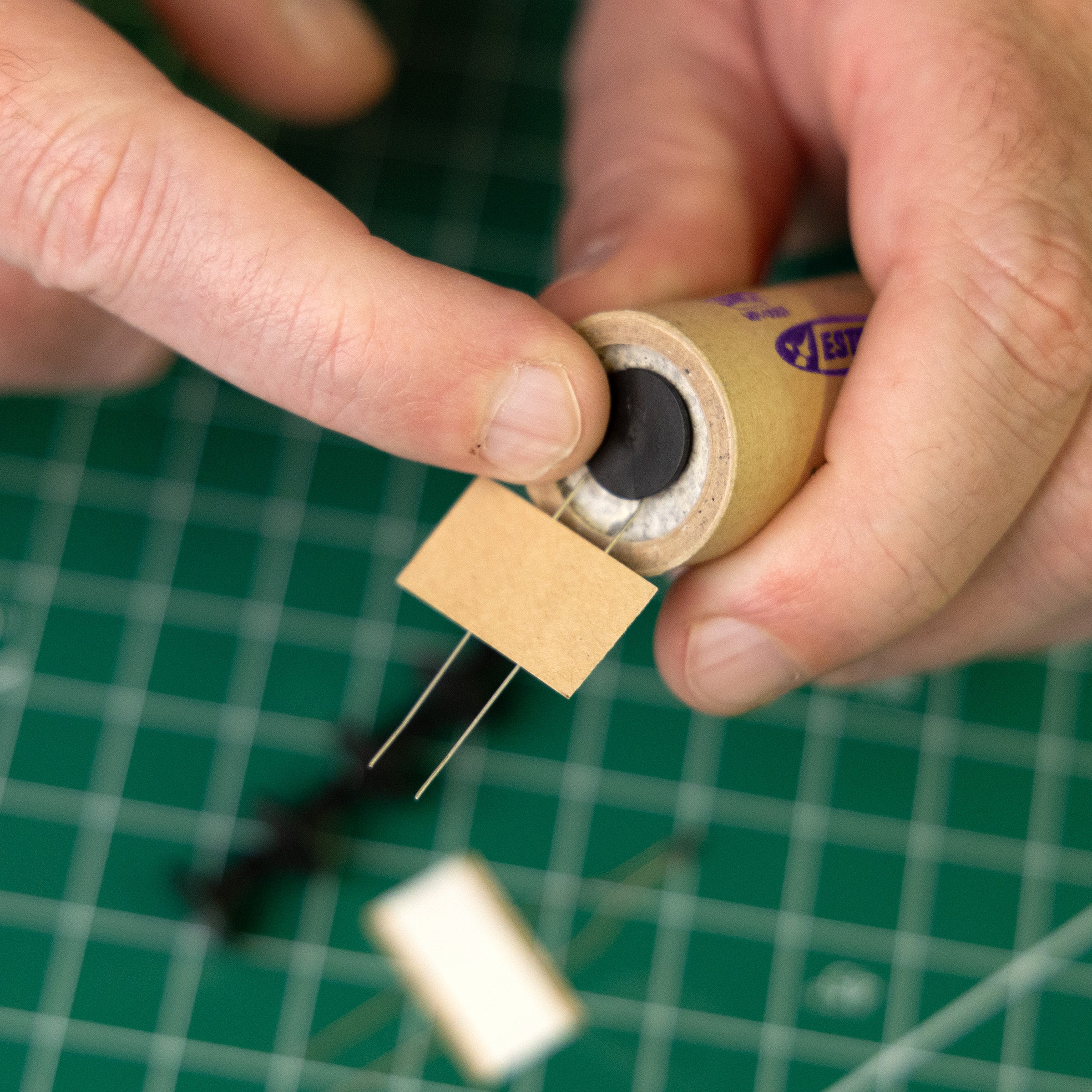

Estes C11-7 Model Rocket Engines Assembly
C11 Model Rocket Engine Thrust Curve Chart
Model Rocket Thrust Curve Example
24mm Rocket Engine Assembly How-to Video

C11-7 Engines

SKU: 010039

$10.99
Sale

The Estes C11-7 engine delivers a solid mid-power performance for rockets weighing less than 4 ounces. With a strong boost, long delay, and reliable ejection timing, it's ideal for modelers looking to push their flights higher without stepping up to D-class engines.

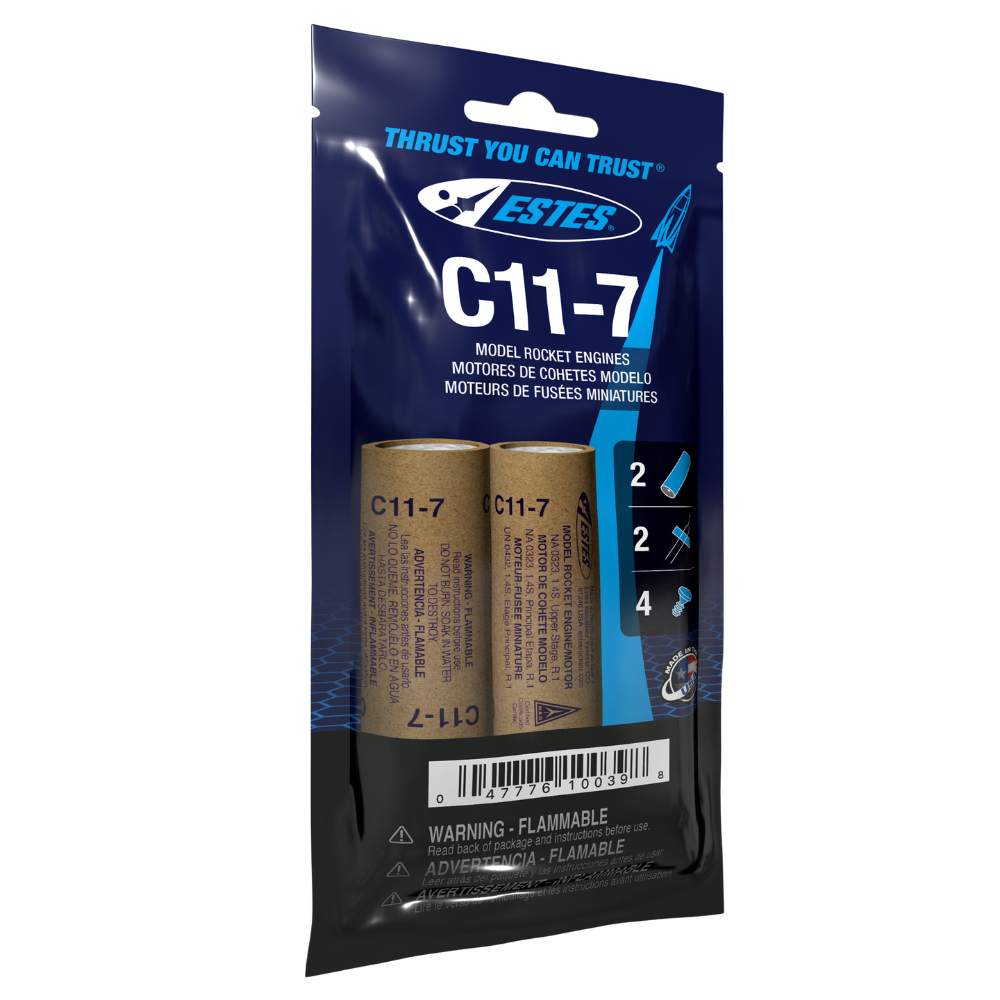

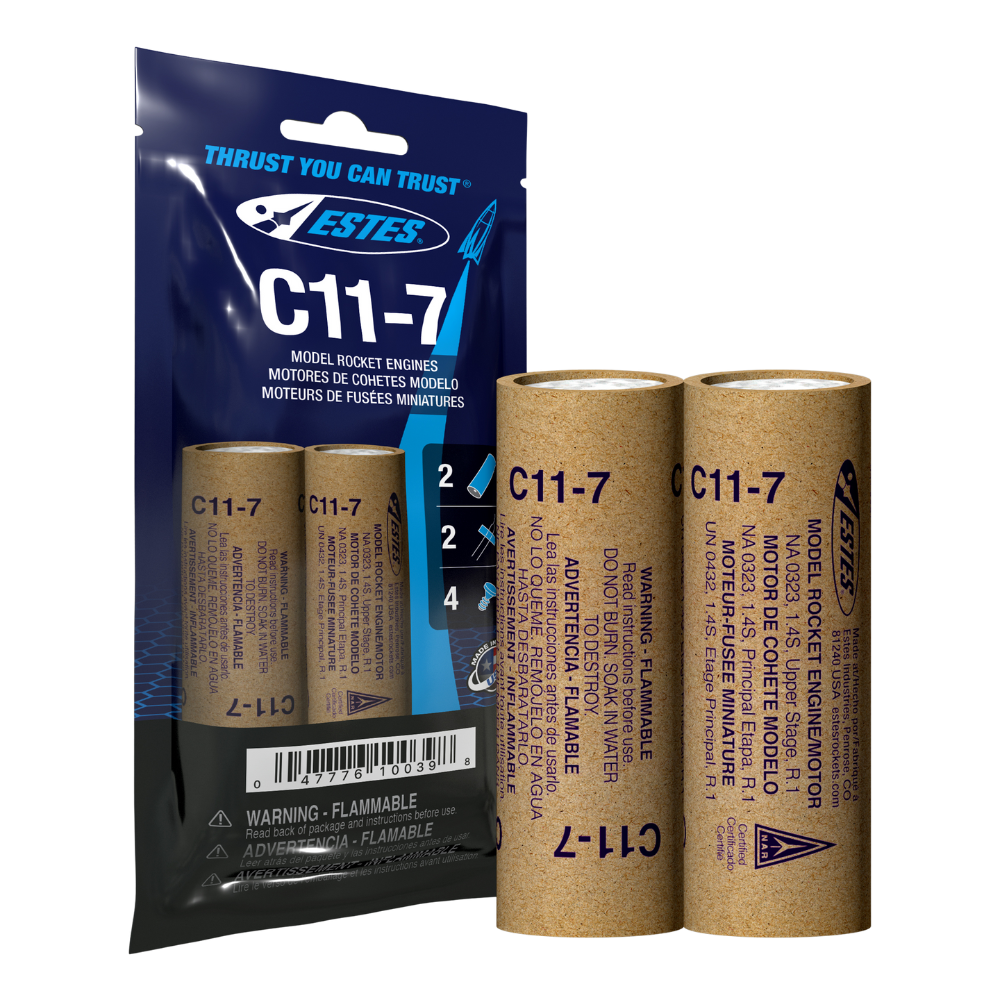

Each pack includes two 24 mm engines, two starters, and four starter plugs—offering everything you need to prep for launch and explore new altitudes with confidence.

Includes:

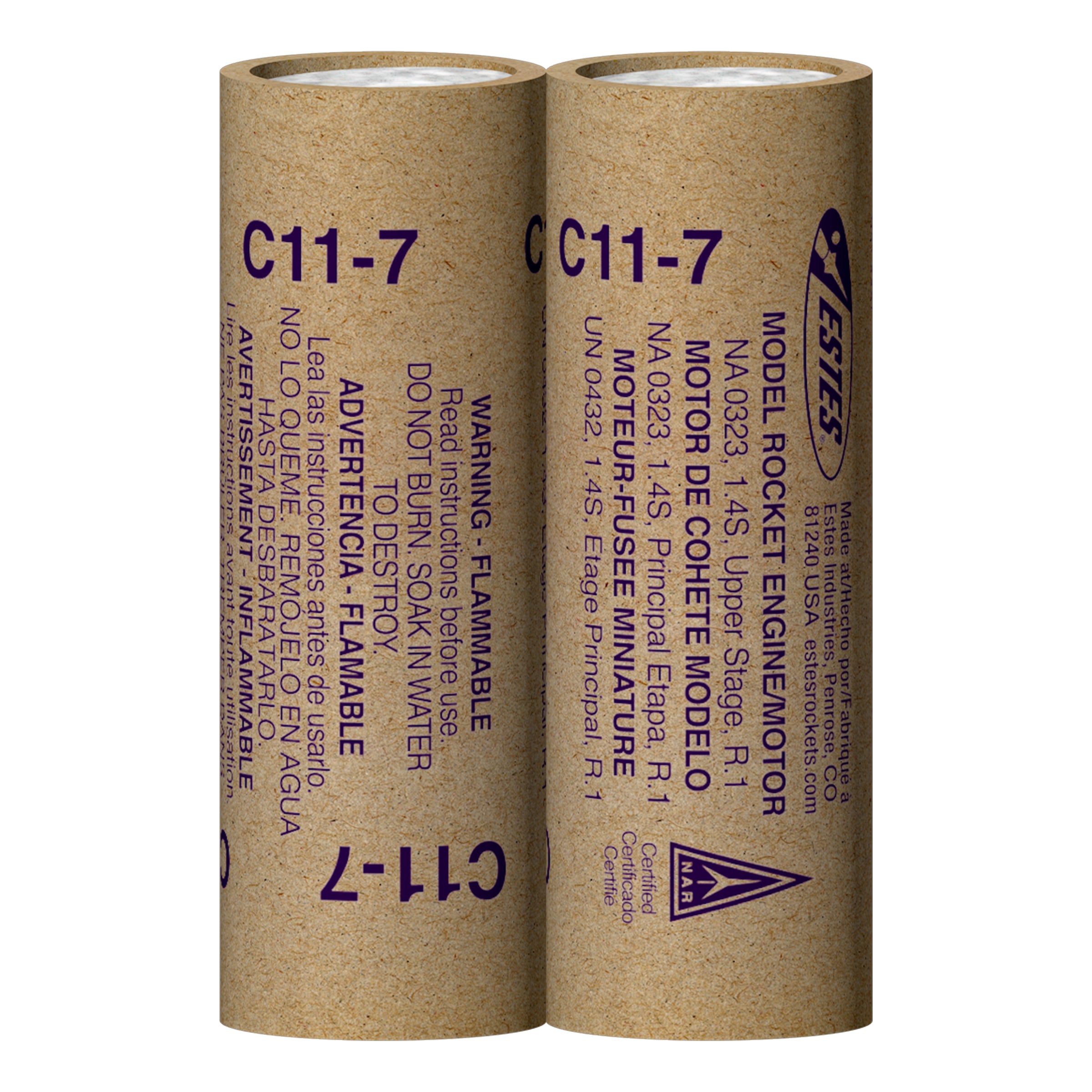

- 2 C11-7 Engines
- 2 Starters
- 4 Starter Plugs

PLEASE NOTE: You must have a physical address for delivery.

Overview

The Estes C11-7 engine is a powerful 24 mm single-stage engine built for reliable mid-power model rocket flights. With a total impulse of 10.00 N-sec and a maximum thrust of 22.10 newtons, this engine is well-suited for rockets weighing less than 4 ounces. Its longer 7-second delay provides ample coast time, making it a solid choice for streamlined rockets where altitude and tracking visibility are key. Whether you're flying for altitude, duration, or precise deployment, the C11-7 provides consistent and dependable performance.

Designed to bridge the gap between standard and higher-thrust engines, the C11-7 offers a unique combination of power and control. The 0.80-second thrust duration delivers a strong, quick boost to clear the launch rod, while the extended coast phase allows parachute deployment at higher altitudes. This engine works especially well in lightweight rockets needing that extra push without stepping up to a D engine.

Each package includes two engines, two starters, and four starter plugs—everything you need to prep and launch with confidence. As part of the Estes 24 mm engine family, the C11-7 is compatible with many mid-sized kits and is a great upgrade for flyers looking to try something more energetic than a C6-5 or B6-4.

Whether you're a seasoned rocketeer or an advancing flyer experimenting with new performance profiles, the C11-7 engine offers a dependable step up. It’s a standout engine for achieving higher altitudes, longer coasts, and better timing on ejection for rockets in the under-4-ounce range.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

Overview

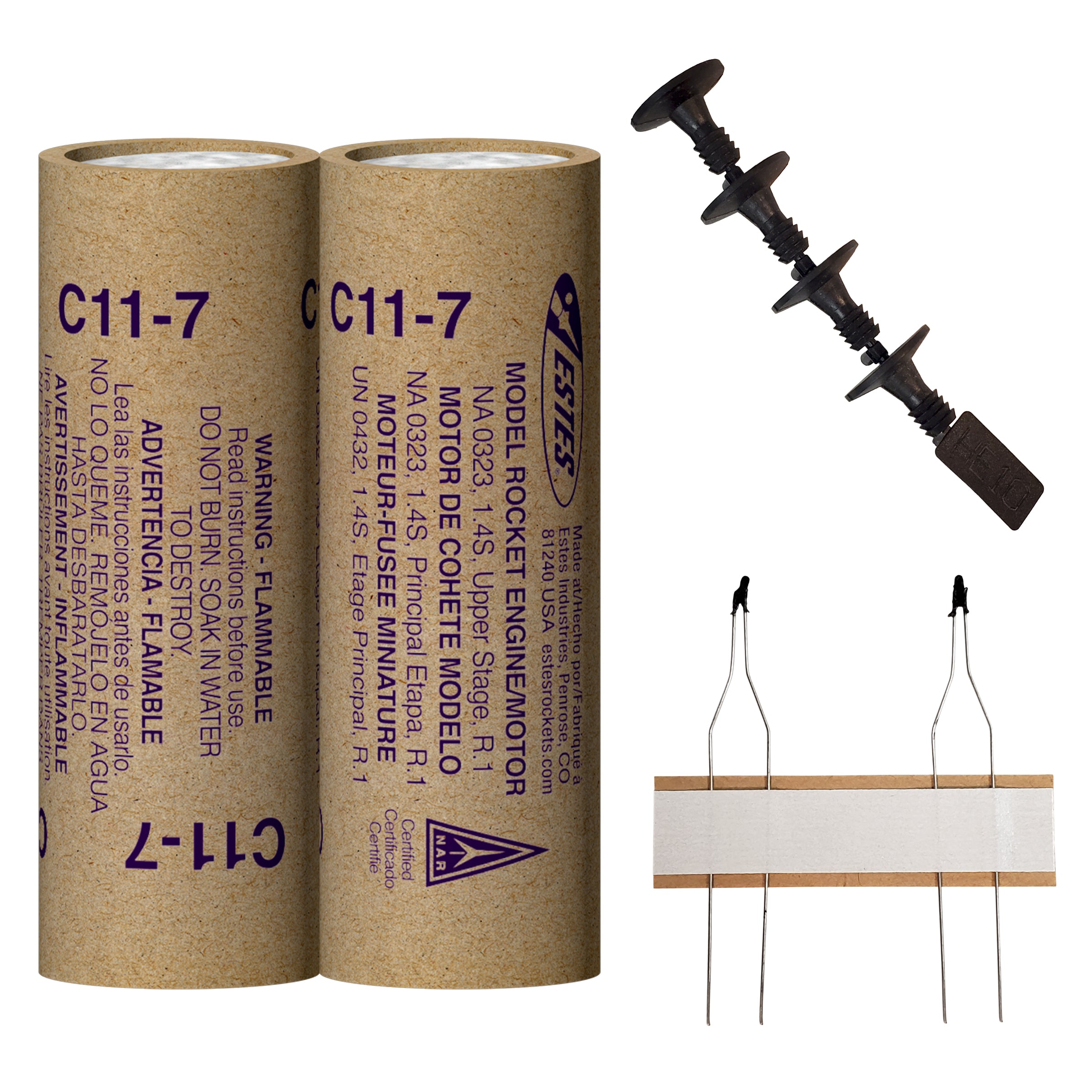

Estes C11-7 Model Rocket Engines with Plugs and Ignitors

Technical Specifications

Technical Specifications

  • Total Impulse

10.00 N-sec
  • Time Delay

7 Seconds
  • Max Lift Weight

4.0 oz (113 g)
  • Max Thrust

22.10 Newtons (4.9 lbs)
  • Thrust Duration

0.80 Seconds
  • Length

2.75 in. (7 cm)
  • Diameter

24 mm
  • Weight

1.19 in. (33.7 g)
  • Propellant Weight

0.44 oz (12.4 g)
C11 Model Rocket Engine Thrust Curve Chart
