Estes Rockets

C5-3 Engines

SKU: 001617
$12.99
Sale

ENGINES FOR MODEL ROCKETS

3 – C5-3 Engines
4 – Starters
4 – Starter Plugs

PLEASE NOTE: You must have a physical address for delivery.

Overview

Recommended Rockets

Specs

Reviews

Overview

The Estes C5-3 engine means 50% increase in maximum thrust over a standard C engine and the punch you need to propel those heavier rockets off the pad. The Super C is a great choice for larger birds and for payload rockets, like competition egg-lofters, that need that extra push.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

Overview

Estes C5-3 Model Rocket Engines

Compatible Rockets

  • Estes 7307 Space Crops DARC-1 Box with Rocket

    Space Corps™ DARC-1™

    Space Corps™ DARC-1™

    $32.99
    $32.99 $32.99

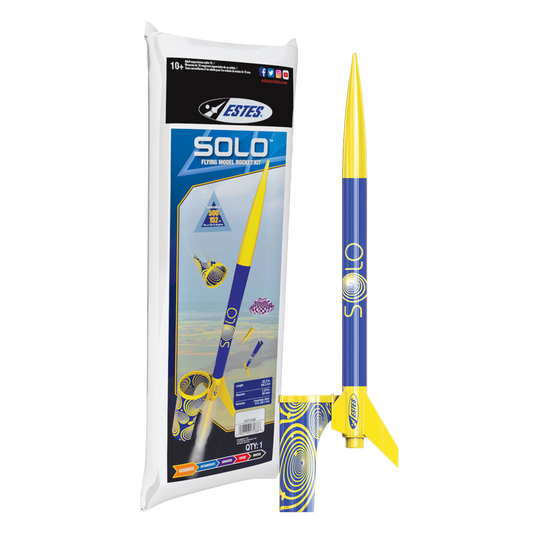

  • Estes Solo Flying Model Rocket

    Solo™

    Solo™

    $21.99
    $21.99 $21.99
  • NASA SLS Model Rocket Kit

    NASA SLS

    NASA SLS

    $76.99
    $76.99 $76.99
  • Estes Blue Origin New Shepard Model Rocket

    Blue Origin New Shepard

    Blue Origin New Shepard

    $69.99
    $69.99 $69.99

Technical Specifications

Technical Specifications

  • Total Impulse

10.00 N-Sec

  • Time Delay

3 Seconds

  • Max Lift Weight

8.0 oz

  • Max Thrust

20.40 Newtons (4.6 lbs)

  • Thrust Duration

1.85 Seconds

  • Length

2.8 in. (7 cm)

  • Diameter

18 mm

  • Weight

0.83 oz. (23.6 g)

  • Propellant Weight

0.39 oz (11 g)
C5 Model Rocket Engine Thrust Curve Chart

Customer Reviews

Based on 12 reviews
100%
(12)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Robert McBee
I messed up a part.

I messed up the 3rd stage foundation wrap for my Saturn V. I sent in a support ticket to see if I could order one separately. To my total surprise the support ticket was answered within 24 hours stating a new one was on the way with no charge. I m buying ALL of my supplies from Estes now

T
Tom Markel
Please do a C5-0!

Love the C5-3, great for my heavy draggy 18 mm scratch built rocket.

Please put out a C5-0!

This would open up the world of two stage 18mm designs that would be more reliable and less prone to weathercocking.

If you put out a C5-0, you could re-release the MIRV. It would go from borderline to outstanding flight profile.

G
Greg Zoghby

Perfect for the Blue Origin! My grandson is all about it.
