Estes D12-3 Model Rocket Engines
Estes D12-3 Model Rocket Engine
D12 Model Rocket Engine Thrust Curve Chart
Model Rocket Thrust Curve Example

D12-3 Engines

SKU: 001566
$13.49
Sale

ENGINES FOR MODEL ROCKETS

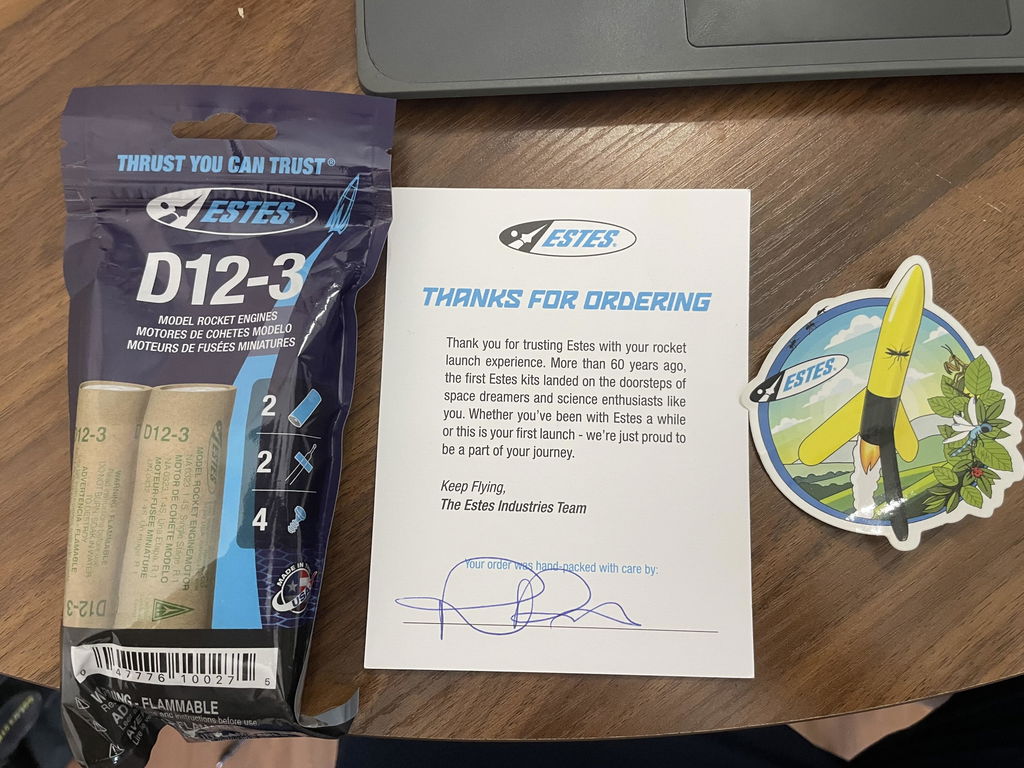

2 – D12-3 Engines
2 – Starters
4 – Starter Plugs

PLEASE NOTE: You must have a physical address for delivery.

Overview

The Estes D12-3 engine is a single stage engine designed for model rocket flight. This engine is a 24mm diameter engine designed for rockets with a maximum lift weight of less than 14 ounces. Each package includes 2 engines, 2 starters and 4 starter plugs.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

Overview

Compatible Rockets

Technical Specifications

Technical Specifications

  • Total Impulse

20.00 N-sec
  • Time Delay

3 Seconds
  • Max Lift Weight

14.0 oz (396 g)
  • Max Thrust

32.90 Newtons (7.4 lbs)
  • Thrust Duration

1.60 Seconds
  • Length

2.75 in. (7 cm)
  • Diameter

24 mm
  • Weight

1.57 oz. (44.5 g)
  • Propellant Weight

0.85 oz (24.2 g)
D12 Model Rocket Engine Thrust Curve Chart
