Estes Rockets

E12-0 Engines

SKU: 001691
$26.49
Sale

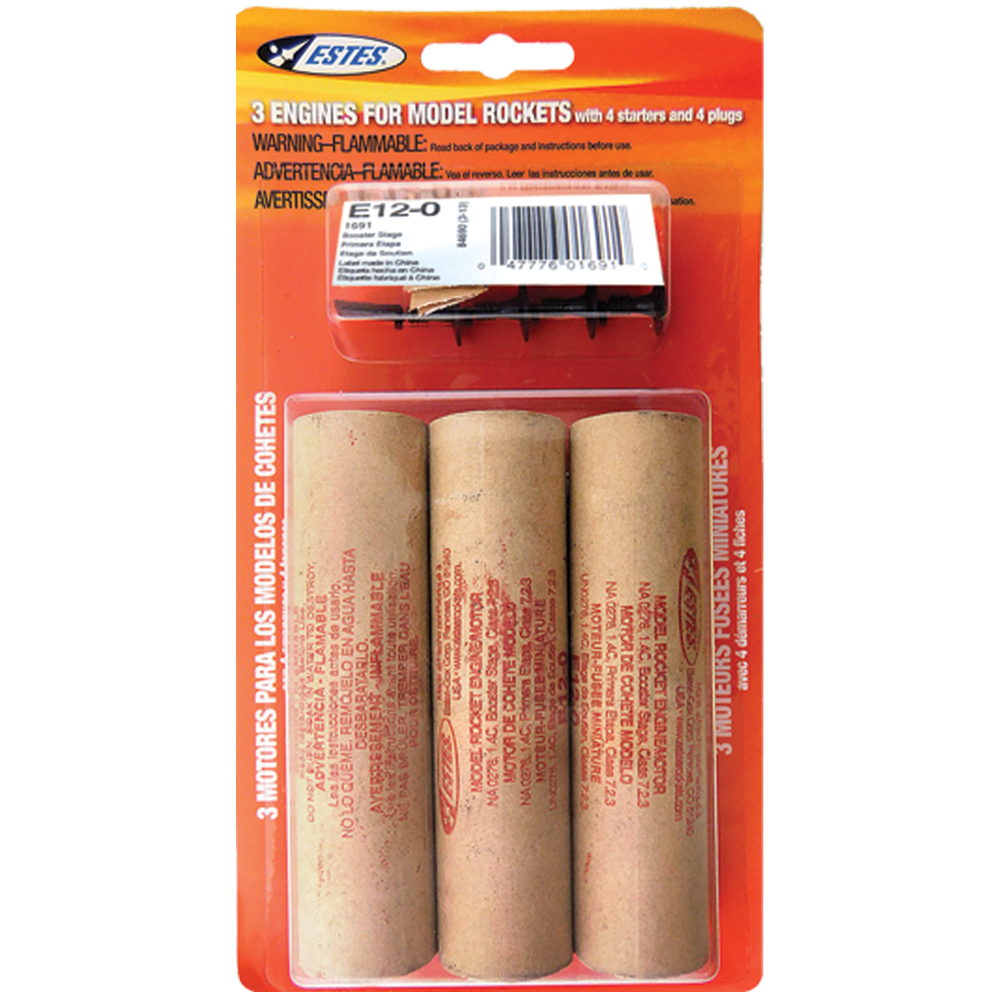

ENGINES FOR MODEL ROCKETS

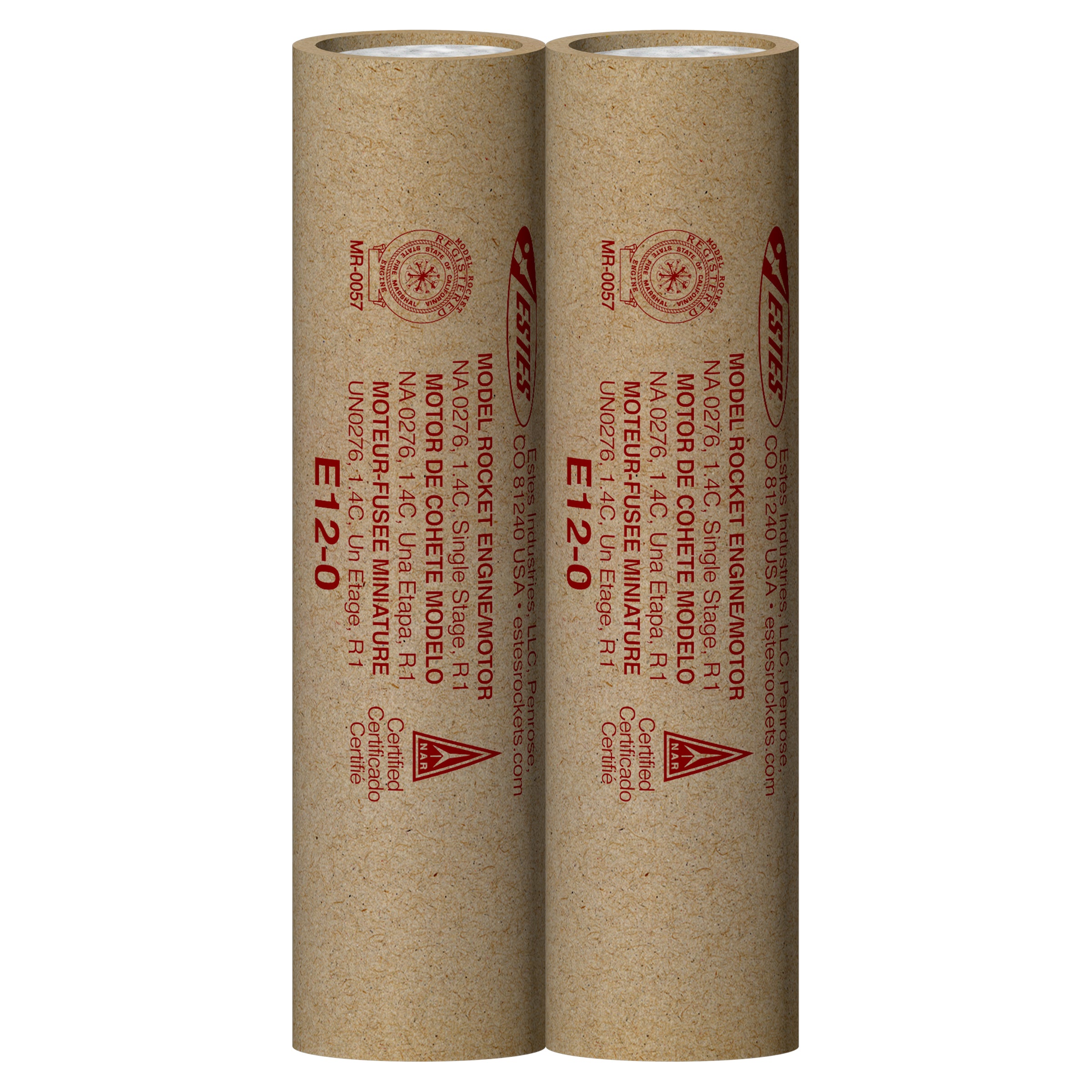

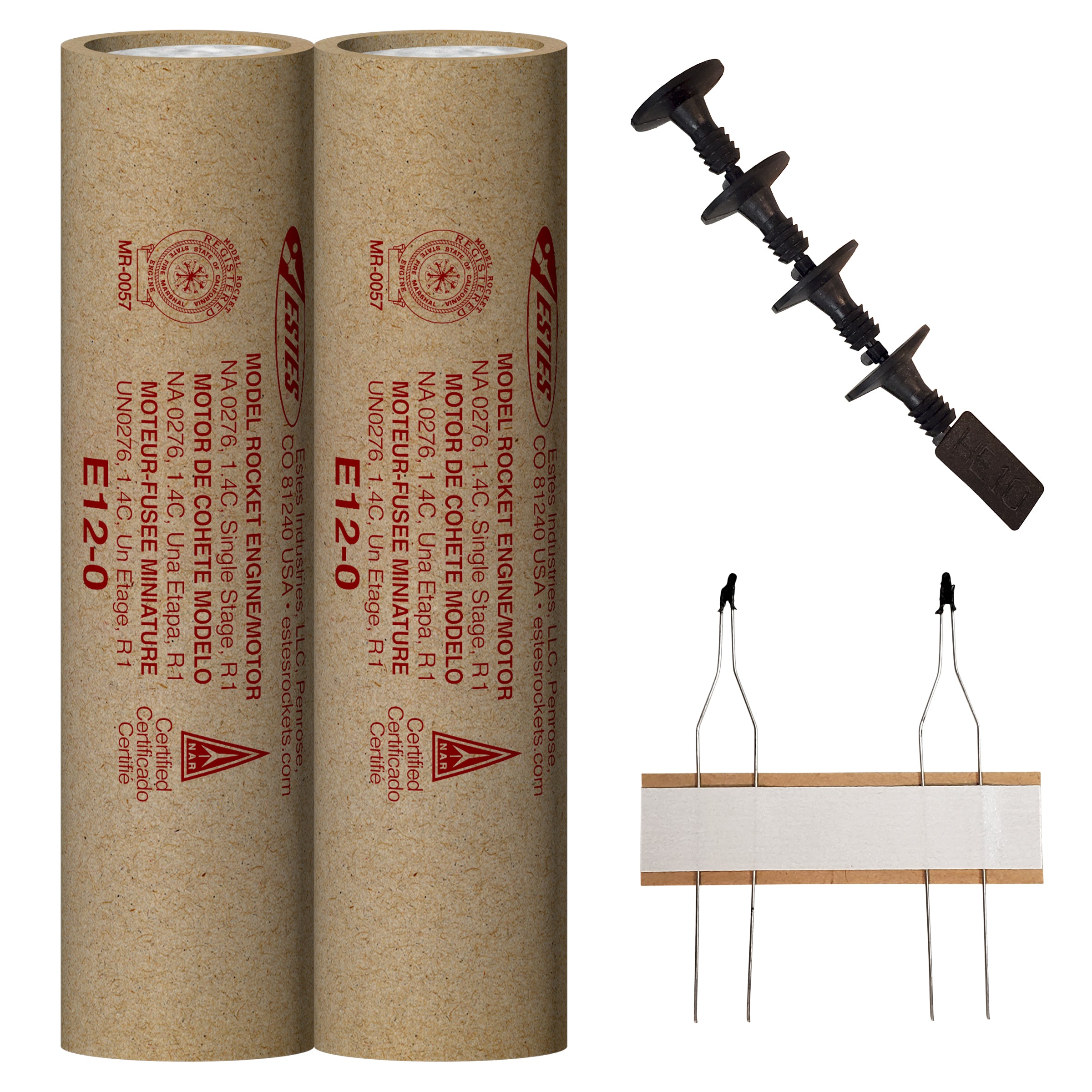

3 – E12-0 Engines
4 – Starters
4 – Starter Plugs

ATTENTION: These engines cannot be sent to post office boxes. Please be sure to provide a PHYSICAL ADDRESS when purchasing E and F sized engines.

E and F sized engines cannot be shipped to Alaska, Hawaii, Puerto Rico or Guam.

Overview

Recommended Rockets

Specs

Reviews

Overview

The Estes E12-0 engine is a booster stage engine designed for model rocket flight and has to be used with another 24 mm engine. This engine is for flights in rockets weighing less than 16 ounces, including the engines. Each package includes 3 engines, 4 igniters and 4 igniter plugs.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

Overview

Compatible Rockets

  • SA-2061 Sasha™

    SA-2061 Sasha™

    SA-2061 Sasha™

    $34.99
    $34.99 $34.99

Technical Specifications

Technical Specifications

  • Total Impulse

28.80 N-sec

  • Time Delay

None

  • Max Lift Weight

16.0 oz (454 g)

  • Max Thrust

31.30 Newtons (7.0 lbs)

  • Thrust Duration

2.60 Seconds

  • Length

3.8 in. (9.7 cm)

  • Diameter

24 mm

  • Weight

2.05 oz. (58.1 g)

  • Propellant Weight

1.3 oz (36.9 g)
E12 Model Rocket Engine Thrust Curve Chart

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Randy Gilbert

50 million launches require the best rocket engines. Estes is bestest!

R
RaySitz
Used this in a Booster Bertha lower stage. Was an

Used this in a Booster Bertha lower stage. Was an impressive lift-off. Was lucky to find rocket as it when out of sight high.

R
Rocketman Lainson
Used this on Estes Sasha 2 stage. Worked really well..

Used this on Estes Sasha 2 stage. Worked really well..
