Estes Rockets

E12-4 Engines

SKU: 001692
$26.49
Sale

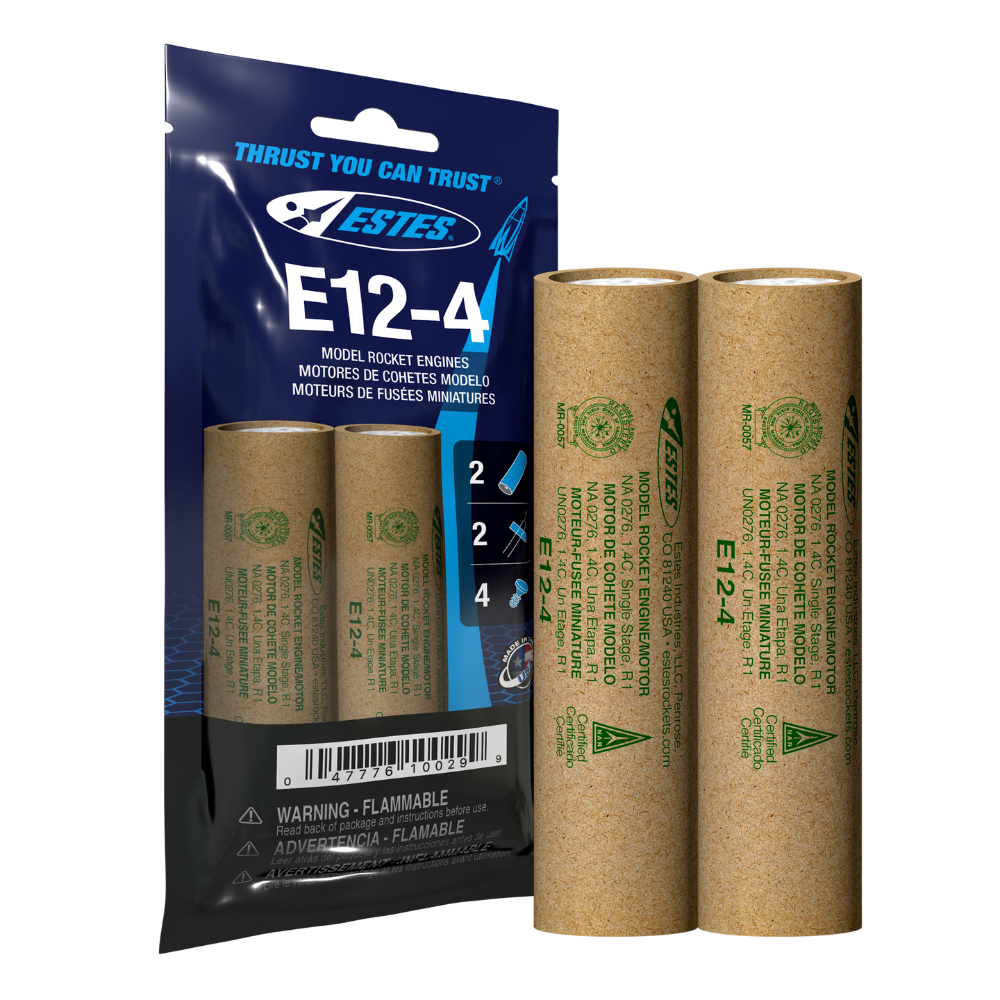

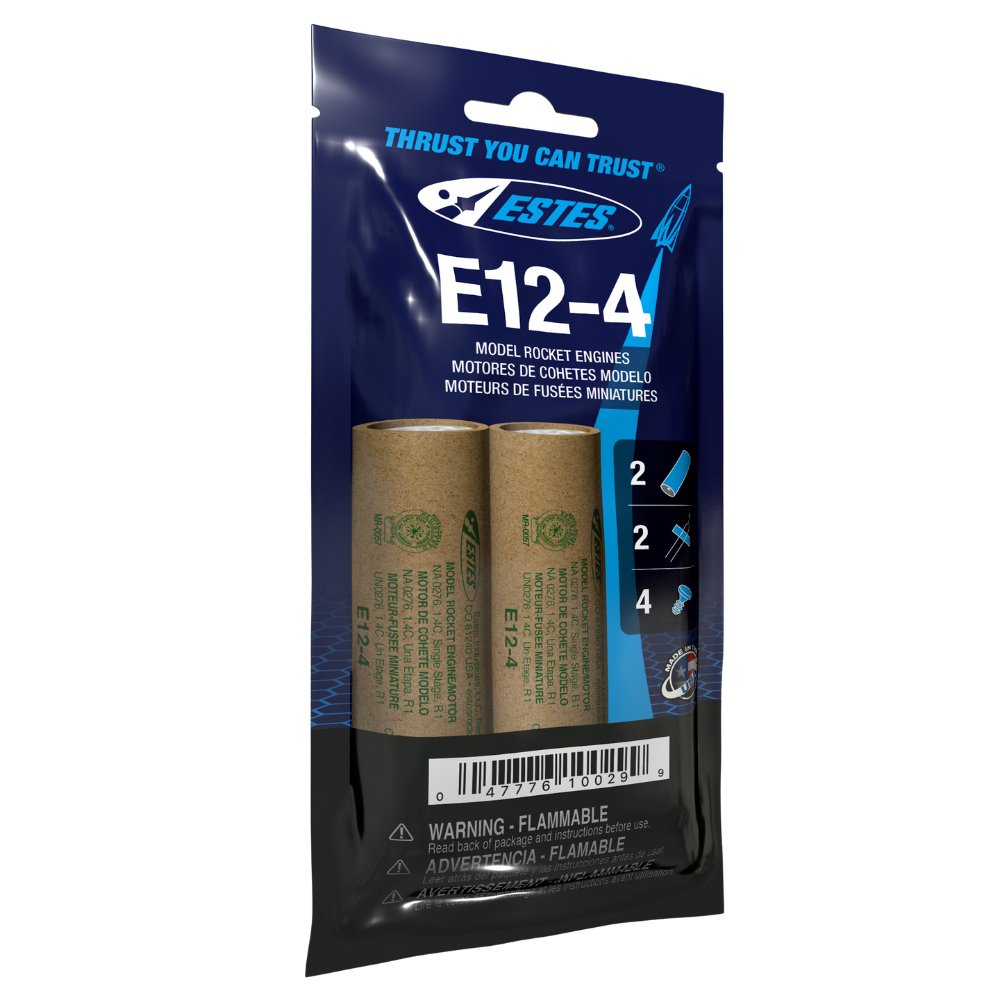

ENGINES FOR MODEL ROCKETS

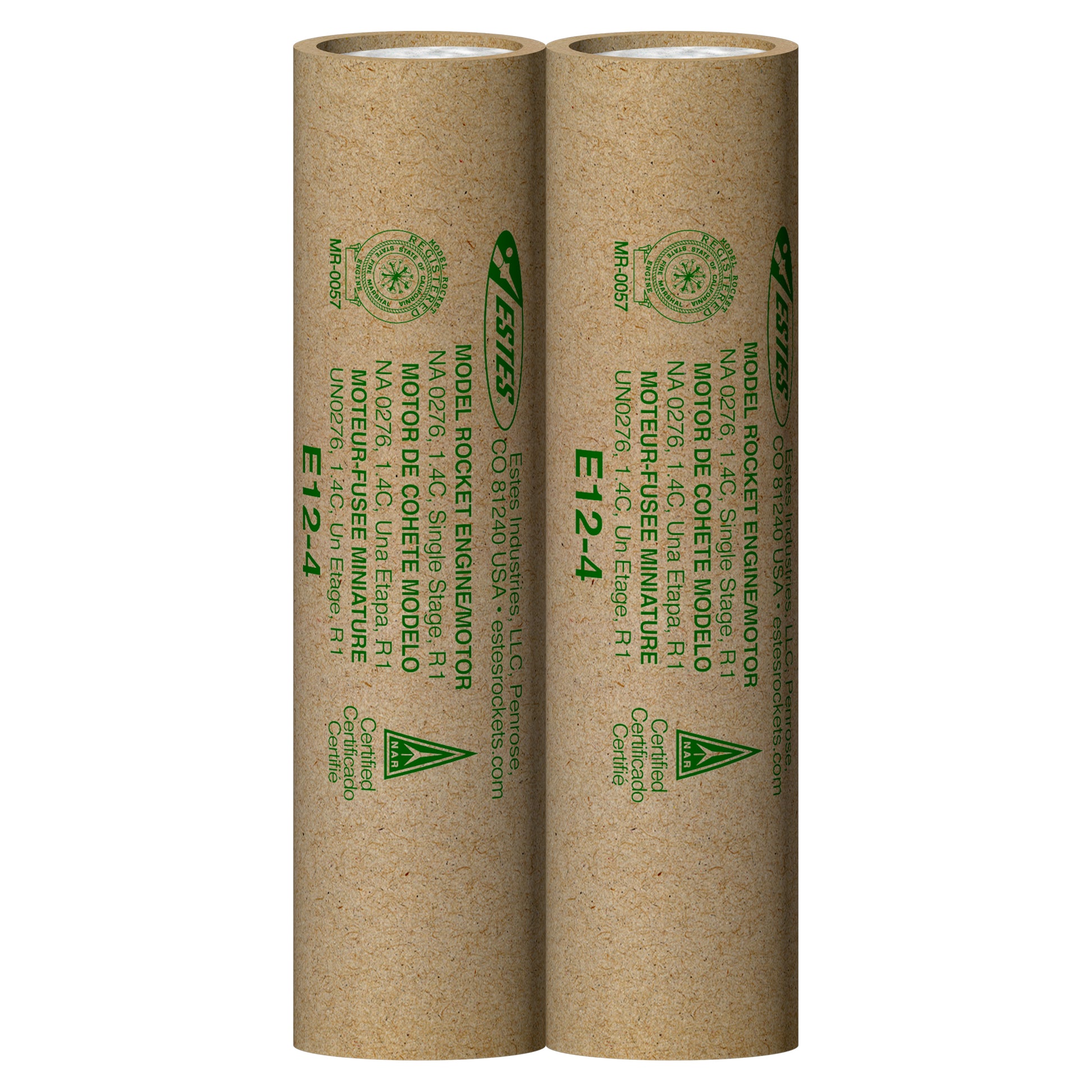

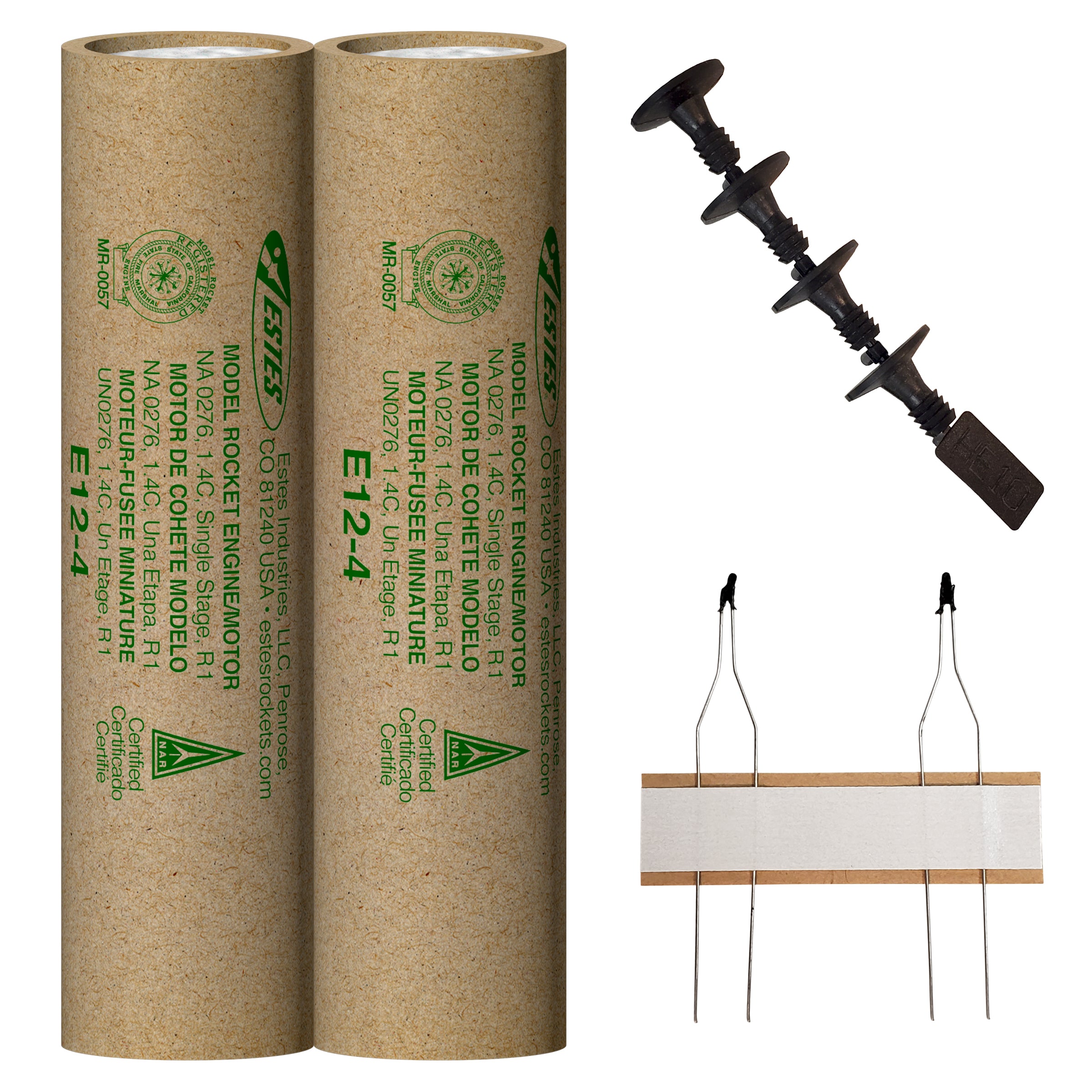

3 – E12-4 Engines
4 – Starters
4 – Starter Plugs

ATTENTION: These engines cannot be sent to post office boxes. Please be sure to provide a PHYSICAL ADDRESS when purchasing E and F sized engines.

E and F sized engines cannot be shipped to Alaska, Hawaii, Puerto Rico or Guam.

Overview

Recommended Rockets

Specs

Reviews

Overview

The Estes E12-4 engine is 24mm diameter an upper stage engine designed for model rocket flight. This engine can also be used as a single stage engine. Maximum lift weight is 17 ounces. Each package includes 3 engines, 4 starters and 4 starter plugs.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

Overview

Compatible Rockets

  • Estes Destination Mars™ Mars Longship™ Model Rocket Kit

    Destination Mars™ Mars Longship™

    Sold out

    Destination Mars™ Mars Longship™

    $37.99
    $37.99 $37.99
    Sold out

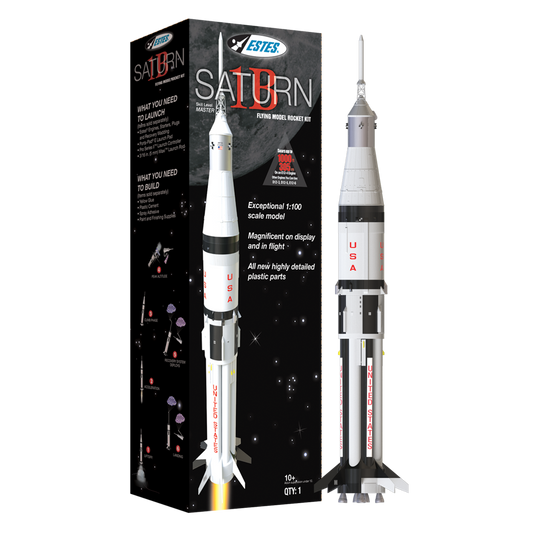

  • Estes Saturn 1B Box With Rocket

    Saturn 1B

    Saturn 1B

    $76.99
    $76.99 $76.99
  • Estes Pro Series II Majestic Model Rocket Kit

    Pro Series II™ Majestic™

    Sold out

    Pro Series II™ Majestic™

    $53.99
    $53.99 $53.99
    Sold out
  • Mean Machine Model Rocket

    Mean Machine™

    Mean Machine™

    $35.99
    $35.99 $35.99

Technical Specifications

Technical Specifications

  • Total Impulse

30.00 N-sec

  • Time Delay

4 Seconds

  • Max Lift Weight

17.0 oz (482 g)

  • Max Thrust

30.60 Newtons (6.9 lbs)

  • Thrust Duration

2.70 Seconds

  • Length

3.8 in. (9.7 cm)

  • Diameter

24 mm

  • Weight

2.16 oz. (61.2 g)

  • Propellant Weight

1.3 oz (36.9 g)
E12 Model Rocket Engine Thrust Curve Chart

Customer Reviews

Based on 6 reviews
100%
(6)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
r
rsbhunter
Replacement engines

Had a bad time with cato's last summer, blew up 3 Estes HiFlier XL rockets . One was replaced by Estes (thank you VERY much) along with the engines . Well, on the second launch using the replacements, another cato!!!!! I have built this replacement (2nd, and again, Thank you) and recieved these engines....I plan to video each flight , so we will see how it all goes!

D
Daniel Duncan
ESTES E12-4 hobby rocket motor

They are always a sure fire way too rocket your ambitions too all New Heights!!!! .... way too GO Estes!!!!!!

R
Rocket Don
My go to motor for the Inter-X-ceptor.

Excellent flight results every time with this motor. Great lift, smoke and deployment.
