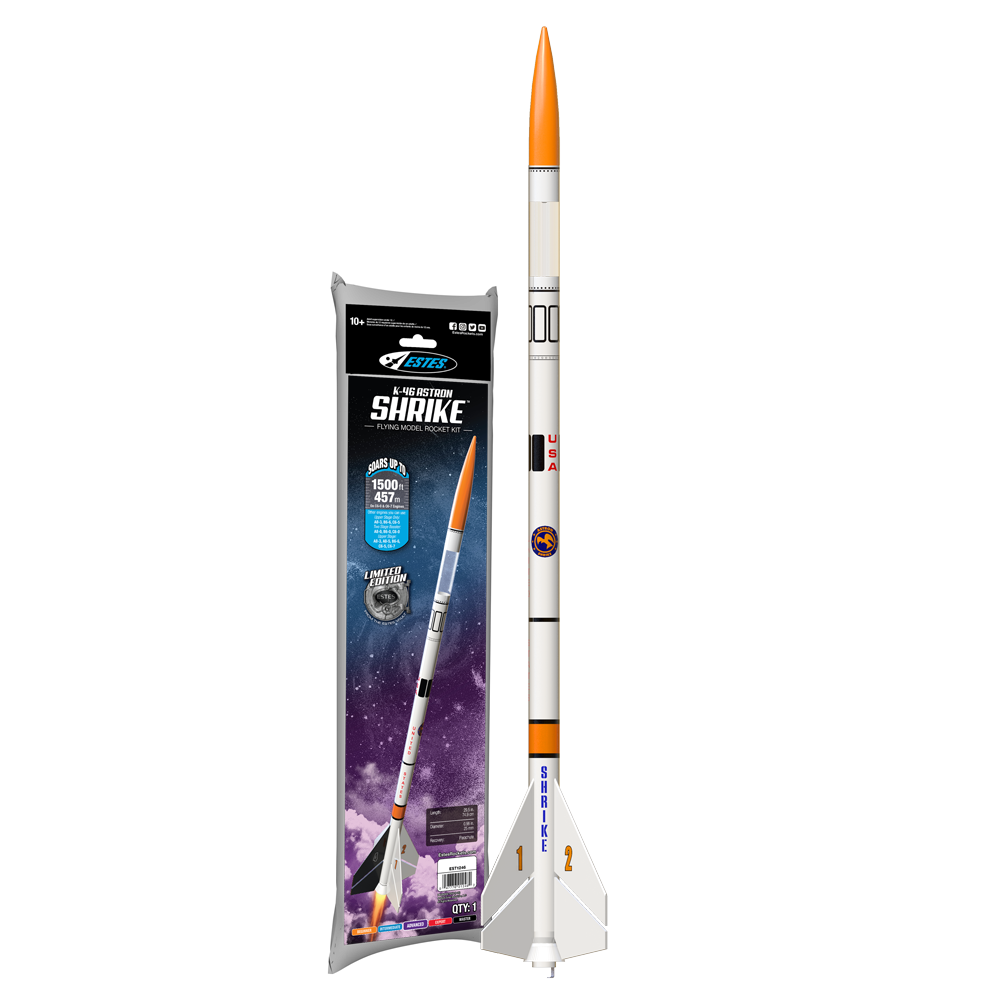

Estes K-46 Astron Shrike Flying Model Rocket Kit
K-46 Astron Shrike Flying Model Rocket with Booster and Payload
K-46 Astron Shrike Model Rocket with Booster
K-46 Astron Shrike Flying Model Rocket with Parachute Recovery

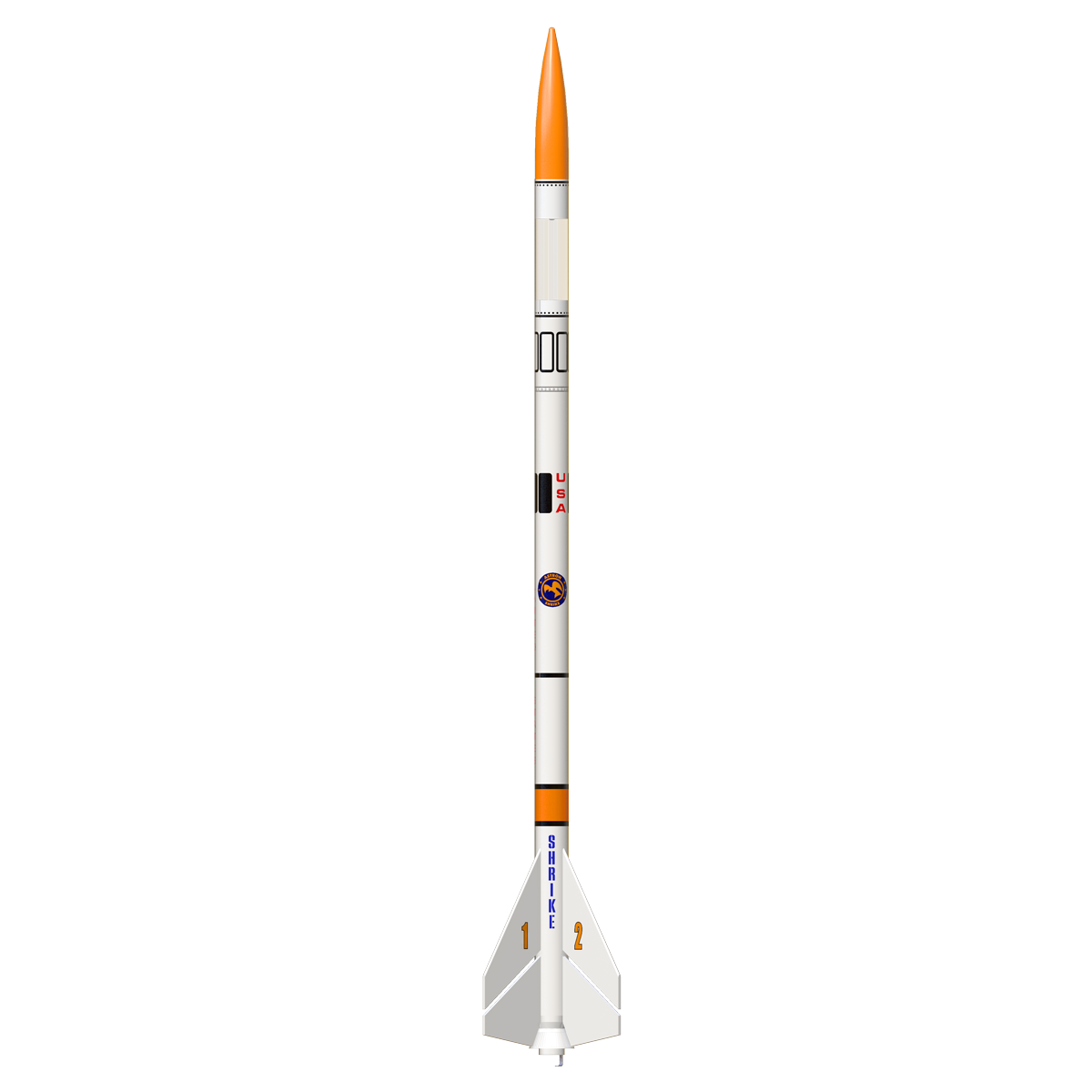

K-46 Astron Shrike Model Rocket

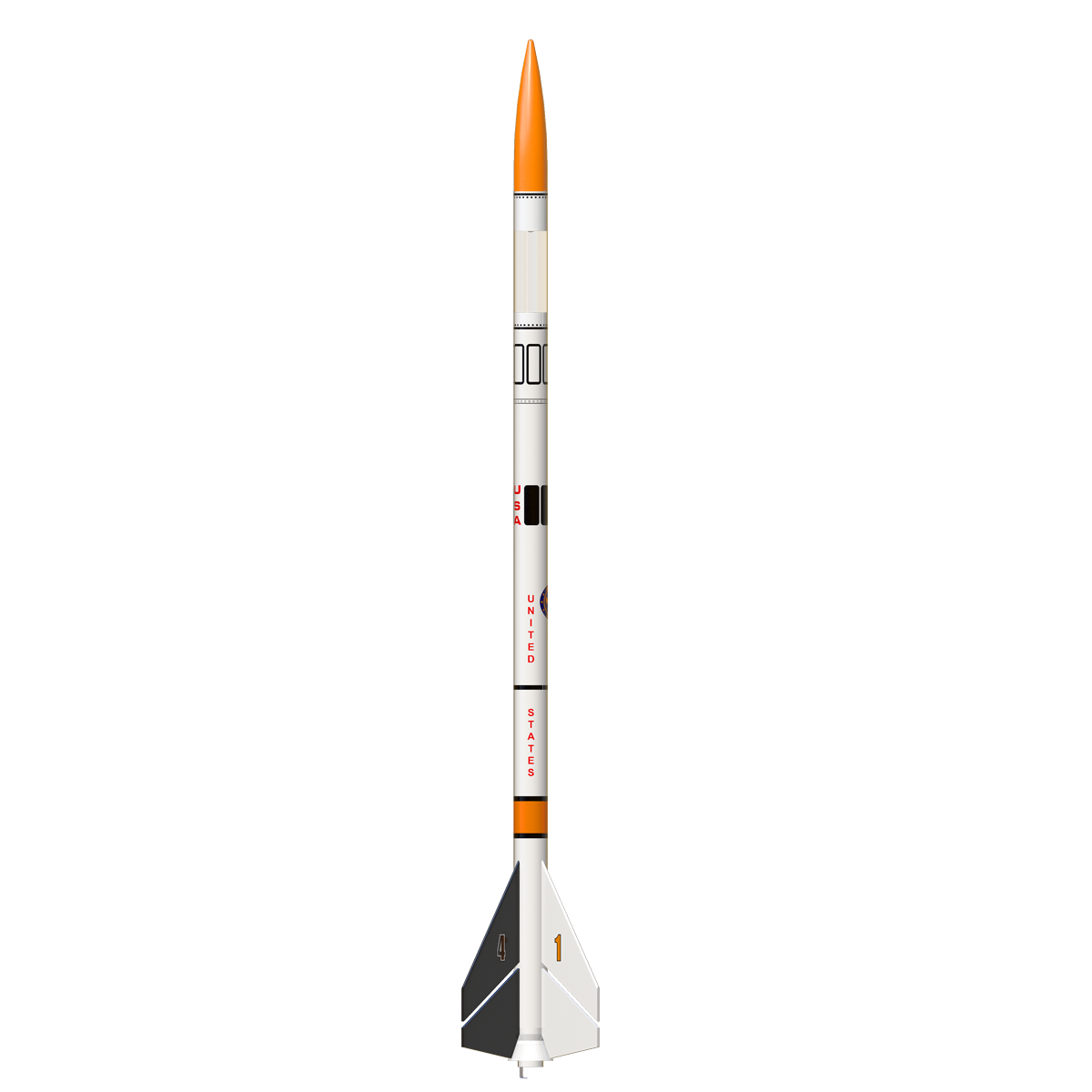

K-46 Astron Shrike Payloader Model Rocket

K-46 Astron Shrike™

SKU: 001246

$44.99
Advanced

The Estes K-46 Astron Shrike™ is a faithful revival of a classic rocket from the golden age of model rocketry. Part of our From the Vault series, this advanced-level kit combines two-stage power with payloader capability, along with a balsa wood nose cone and laser-cut balsa fins that bring authentic craftsmanship to every build.

Capable of soaring up to 1,500 feet on standard 18 mm engines, the Astron Shrike delivers both nostalgic charm and high-performance thrills. Its sleek, historic design makes it a standout addition to any rocket collection.

  • SKILL LEVEL: Advanced
  • RECOMMENDED ENGINES:
    Booster: A8-0, B6-0, C6-0
    Upper Stage: A8-3, A8-5, B6-6, C6-5, C6-7
  • PROJECTED ALTITUDE: 1500 ft. (457 m)

Overview

The K-46 Astron Shrike™ brings back a legendary model from Estes’ early days. Originally released in the golden era of model rocketry, this design has been reintroduced as part of the exclusive From the Vault series. The Shrike combines historic appeal with modern craftsmanship, giving experienced builders a chance to own and fly a piece of rocketry history.

Two-Stage Power and Payloader Design

What makes the Astron Shrike truly unique is its combination of multistage flight and payloader capability. The booster stage provides the extra energy needed to reach altitudes up to 1,500 feet, while the upper stage payload section allows rocketeers to experiment with small cargo or creative mission ideas. This dual function makes it one of the most versatile kits in the series.

Balsa Construction for True Vintage Craftsmanship

The Astron Shrike features a balsa wood nose cone and laser-cut balsa fins, offering builders the classic materials that defined early model rocketry. These lightweight wood components shape beautifully, sand smoothly, and create a polished finish that feels authentic to the era. Combined with modern precision cutting, the Shrike offers both nostalgia and elevated performance.

High-Altitude Thrills

The Astron Shrike flies on standard 18mm Estes engines, with a range of booster and upper-stage combinations. Recommended engines include A8-0, B6-0, and C6-0 for the booster, and A8-3, A8-5, B6-6, C6-5, and C6-7 for the upper stage. With proper setup, you can enjoy dramatic two-stage flights followed by smooth recoveries under the 12 inch parachute.

What You’ll Need

To complete your Astron Shrike build, you’ll need basic hobby tools and supplies: pencil, ruler, masking tape, scissors, hobby knife, carpenter’s glue, fine and extra-fine sandpaper, primer, paint, and an optional clear coat. For launch, pair your Shrike with the Porta-Pad® II Launch Pad, Electron Beam® Launch Controller, recovery wadding, and your choice of recommended engines.

K-46 Astron Shrike Flying Model Rocket with Booster and Payload
K-46 Astron Shrike Flying Model Rocket with Booster and Payload

What You Need to Fly

Estes Porta-Pad II Launch Pad and Electron Beam Launch Controller, Estes model rocket engines, starters and recovery wadding. Four 1.5V high quality AA alkaline batteries (sold separately).

Technical Specifications

  • Recommended Engines

Booster: A8-0, B6-0, C6-0
Upper Stage: A8-3, A8-5, B6-6, C6-5, C6-7
  • Launch System

Porta-Pad II
  • Launch Rod Size

1/8 in. (3.18 mm)
  • Projected Max Altitude

1500 ft. (457 m)
  • Recovery System

12 in. (30.5 cm) Parachute
Tumble
  • Length

29.5 in. (74.9 cm)
  • Diameter

0.98 in. (24.9 mm)
  • Weight

2.5 oz (70.9 g)
  • Fin Material

Laser Cut Balsa Wood

Needed to Build (sold separately)

Pencil, Ruler, Masking Tape, Scissors, Hobby Knife, Carpenter's Glue, Fine Sandpaper, Extra Fine Sandpaper, Primer (white), Paint, Clear Coat (optional)
K-46 Astron Shrike Flying Model Rocket with Parachute Recovery
Estes model rocketry is recommended for ages 10 and up with adult supervision for those under 12.
