Estes B6-4 Model Rocket Engine Flight Pack
B6 Model Rocket Engine Thrust Curve Chart
Model Rocket Thrust Curve Example

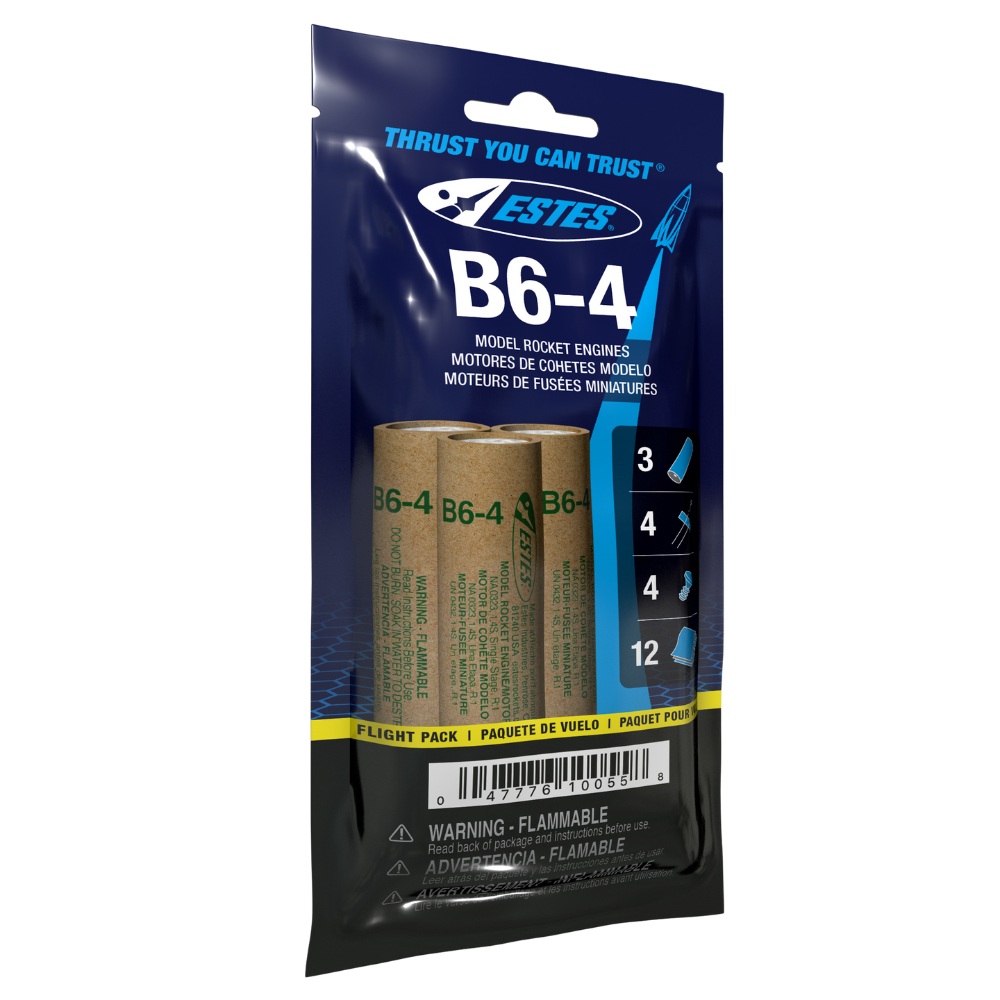

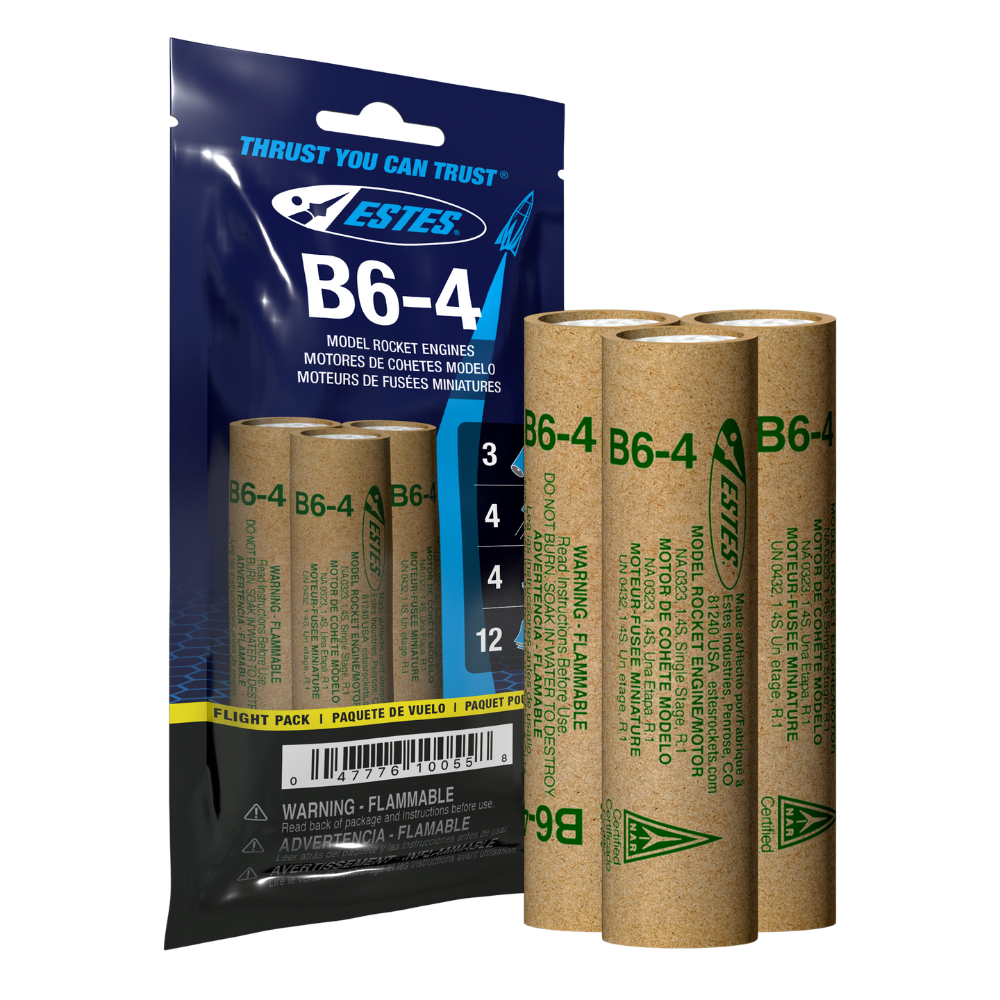

B6-4 Engine Flight Pack

SKU: 007963
$12.99
Sale

ENGINES FOR MODEL ROCKETS

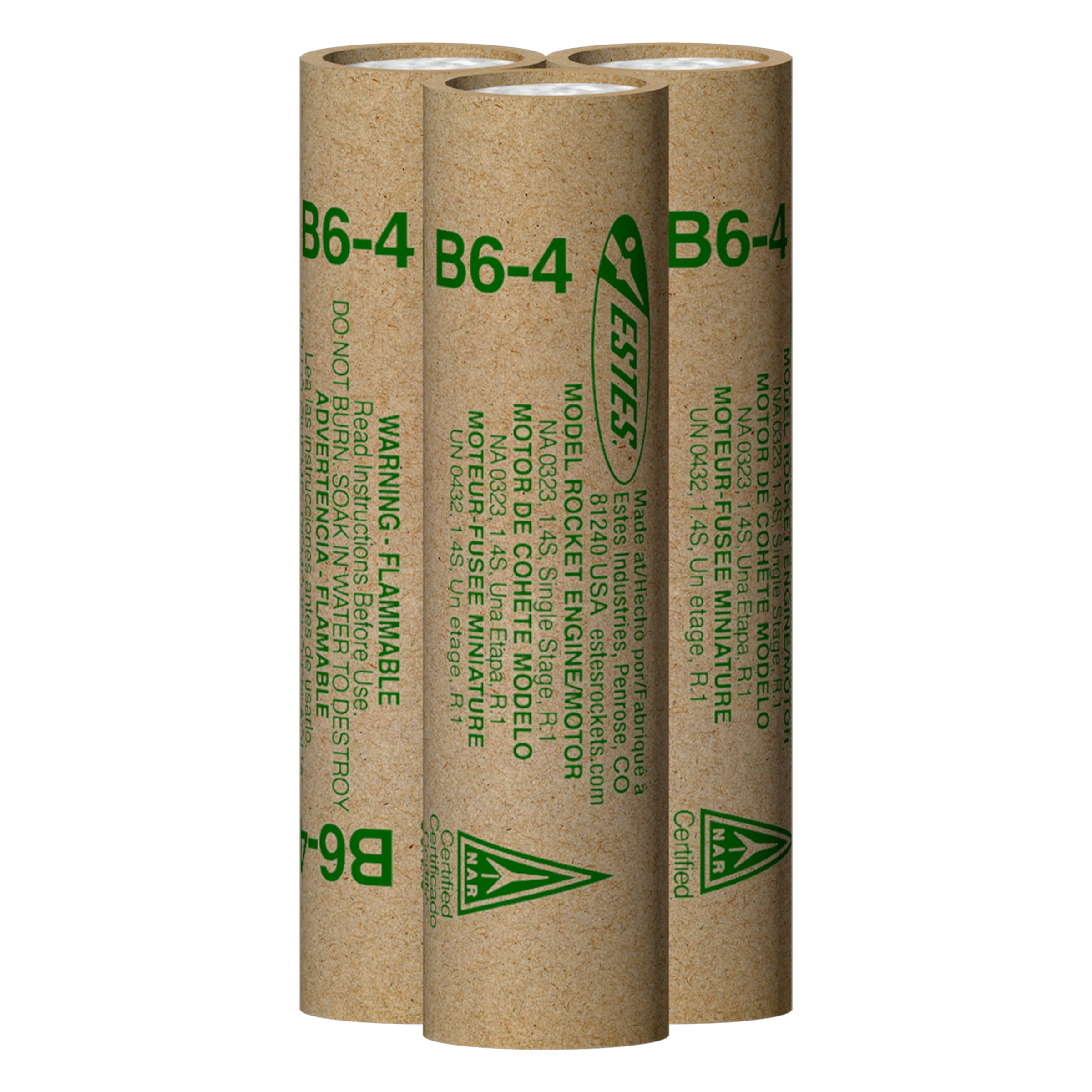

3 – B6-4 Engines
4 – Starters
4 – Starter Plugs
12 – Sheets of Recovery Wadding

PLEASE NOTE: You must have a physical address for delivery.

Overview

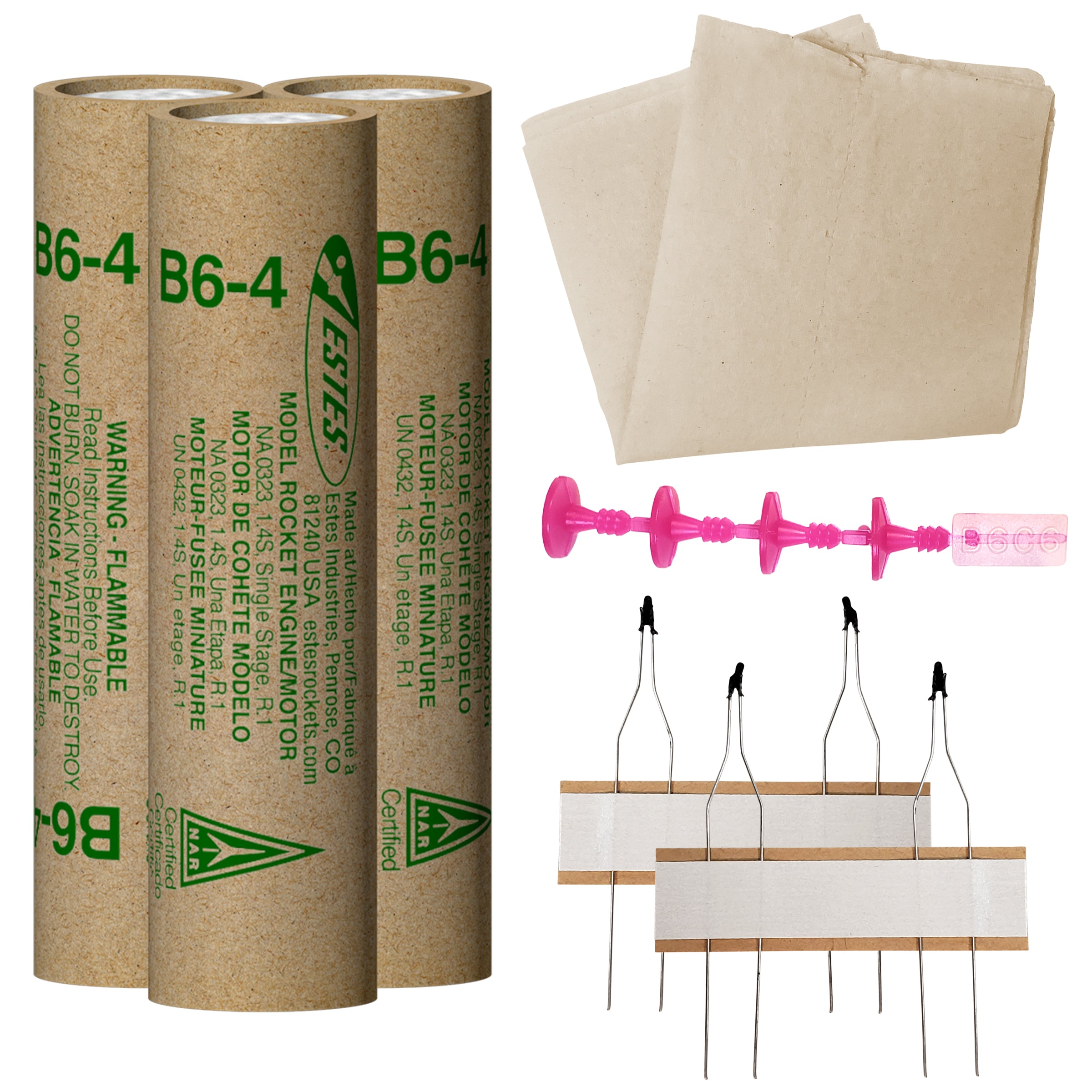

Includes 3 engines, 4 starters, 4 plugs and 12 sheets of recovery wadding.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

Overview

Estes B6-4 Model Rocket Engine Flight Pack

Compatible Rockets

Technical Specifications

Technical Specifications

  • Total Impulse

5.00 N-sec
  • Time Delay

4 Seconds
  • Max Lift Weight

4.0 oz (113 g)
  • Max Thrust

12.10 Newtons (2.7 lbs)
  • Thrust Duration

0.80 Seconds
  • Length

2.8 in. (7 cm)
  • Diameter

18 mm
  • Weight

.63 oz. (17.9 g)
  • Propellant Weight

0.23 oz (6.5 g)
B6 Model Rocket Engine Thrust Curve Chart
