Estes E16-4 Model Rocket Engines
E16-4 Model Rocket Engine
E16 Model Rocket Engine Thrust Curve Chart
Model Rocket Thrust Curve Example
Estes E16-4 Model Rocket Engines
E16-4 Model Rocket Engine
E16 Model Rocket Engine Thrust Curve Chart
Model Rocket Thrust Curve Example
Estes Rockets

E16-4 Engines (29 mm)

SKU: 001696
$25.49
Sale Sold out

ENGINES FOR MODEL ROCKETS

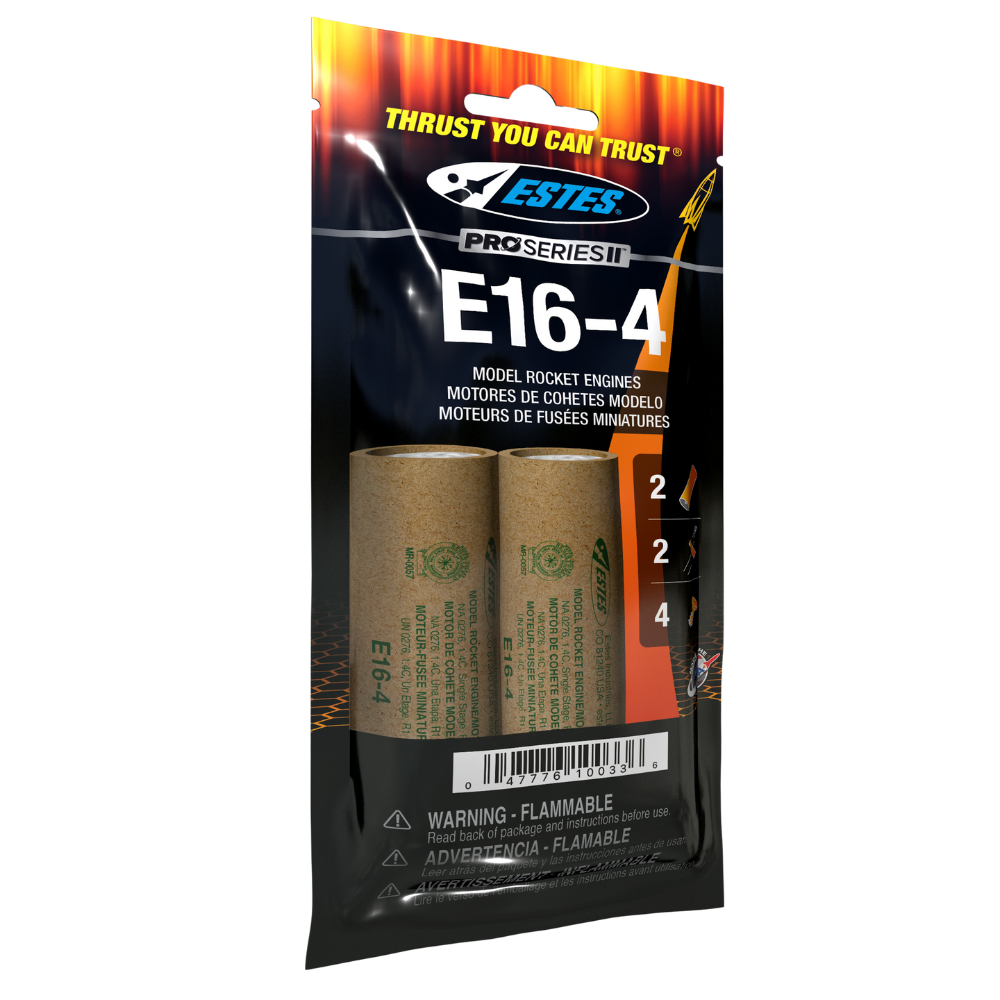

2 – E16-4 Engines
2 – Starters
4 – Starter Plugs

ATTENTION: These engines cannot be sent to post office boxes. Please be sure to provide a PHYSICAL ADDRESS when purchasing E and F sized engines.

E and F sized engines cannot be shipped to Alaska, Hawaii, Puerto Rico or Guam.

Overview

Recommended Rockets

Specs

Reviews

Overview

The Estes E16-4 engine is 29mm diameter an upper stage engine designed for model rocket flight. This engine can also be used as a single stage engine. Maximum lift weight is 20 ounces. Each package includes 2 engines, 2 starters and 4 starter plugs.

ATTENTION: Residents of California, New Jersey, Rhode Island and North Dakota please review the Terms of Sale for state specific restrictions or Click Here for State Specific Restrictions.

Overview

Estes E16-4 Model Rocket Engine

Compatible Rockets

  • Estes Saturn V Skylab Model Rocket Kit

    Saturn V Skylab

    Sold out

    Saturn V Skylab

    $109.99
    $109.99 $109.99
    Sold out
  • Estes Doorknob Model Rocket Kit

    Pro Series II™ Doorknob

    Pro Series II™ Doorknob

    $43.99
    $43.99 $43.99
  • Estes Super Big Bertha Model Rocket

    Pro Series II™ Super Big Bertha™

    Pro Series II™ Super Big Bertha™

    $43.99
    $43.99 $43.99
  • Estes Der Big Red Max Model Rocket

    Pro Series II™ Der Big Red Max™

    Pro Series II™ Der Big Red Max™

    $54.99
    $54.99 $54.99

Technical Specifications

Technical Specifications

  • Total Impulse

33.68 N-sec

  • Time Delay

4 Seconds

  • Max Lift Weight

20.0 oz (566 g)

  • Max Thrust

26.44 Newtons (5.9 lbs)

  • Thrust Duration

2.09 Seconds

  • Length

4.5 in. (11.4 cm)

  • Diameter

29 mm

  • Weight

2.86 oz. (81.1 g)

  • Propellant Weight

1.41 oz (40.0 g)
E16 Model Rocket Engine Thrust Curve Chart
